Manifold assembly Sirius
33357900.00
33357900.00

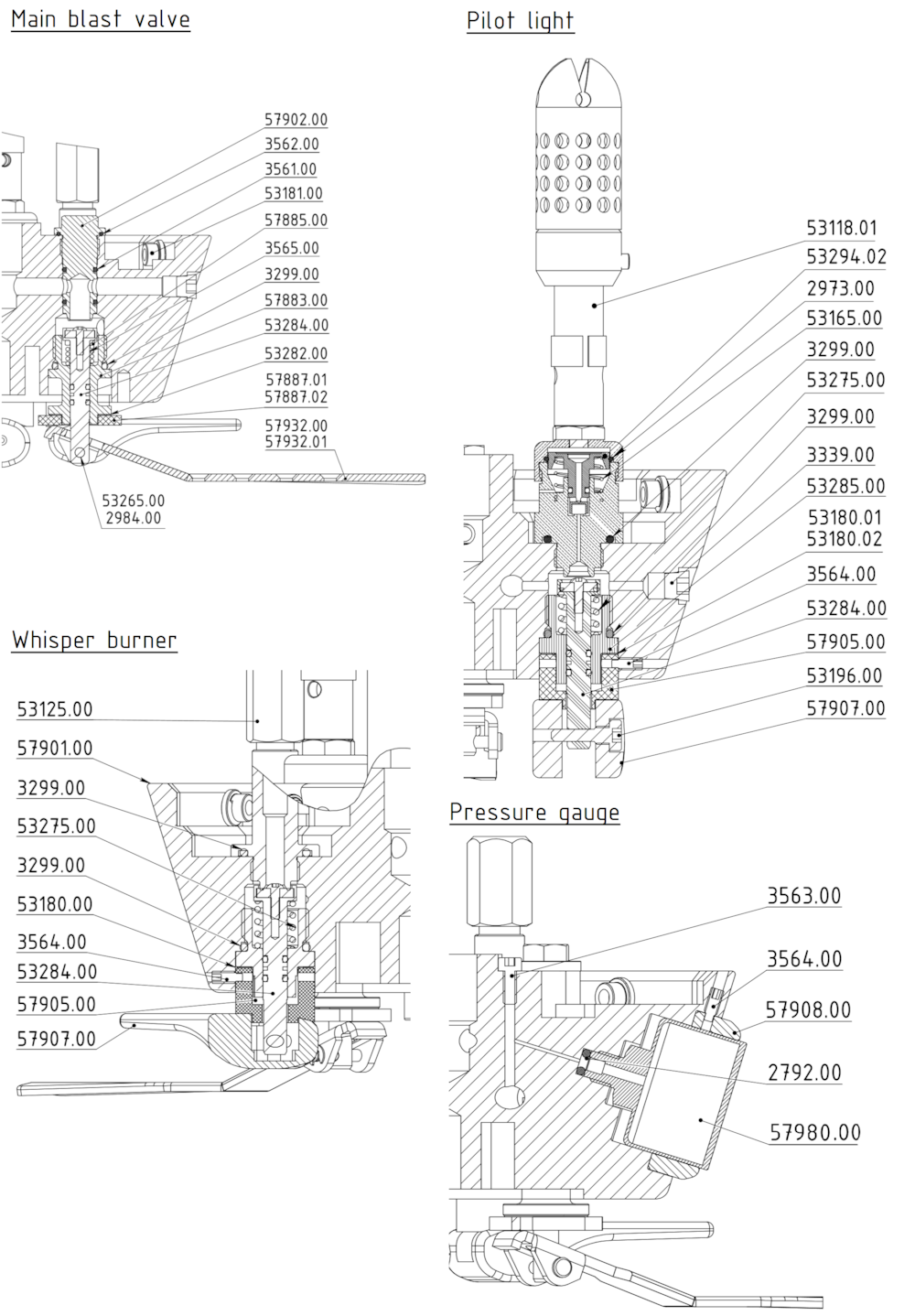

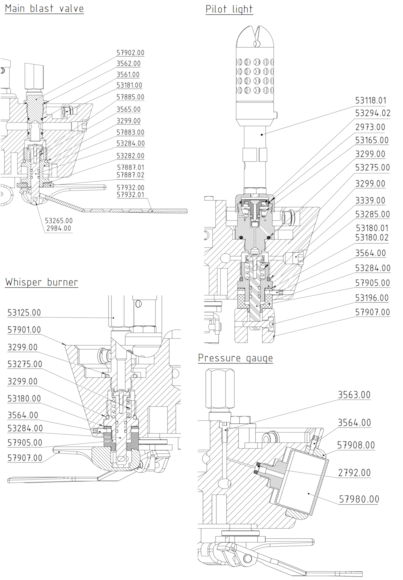

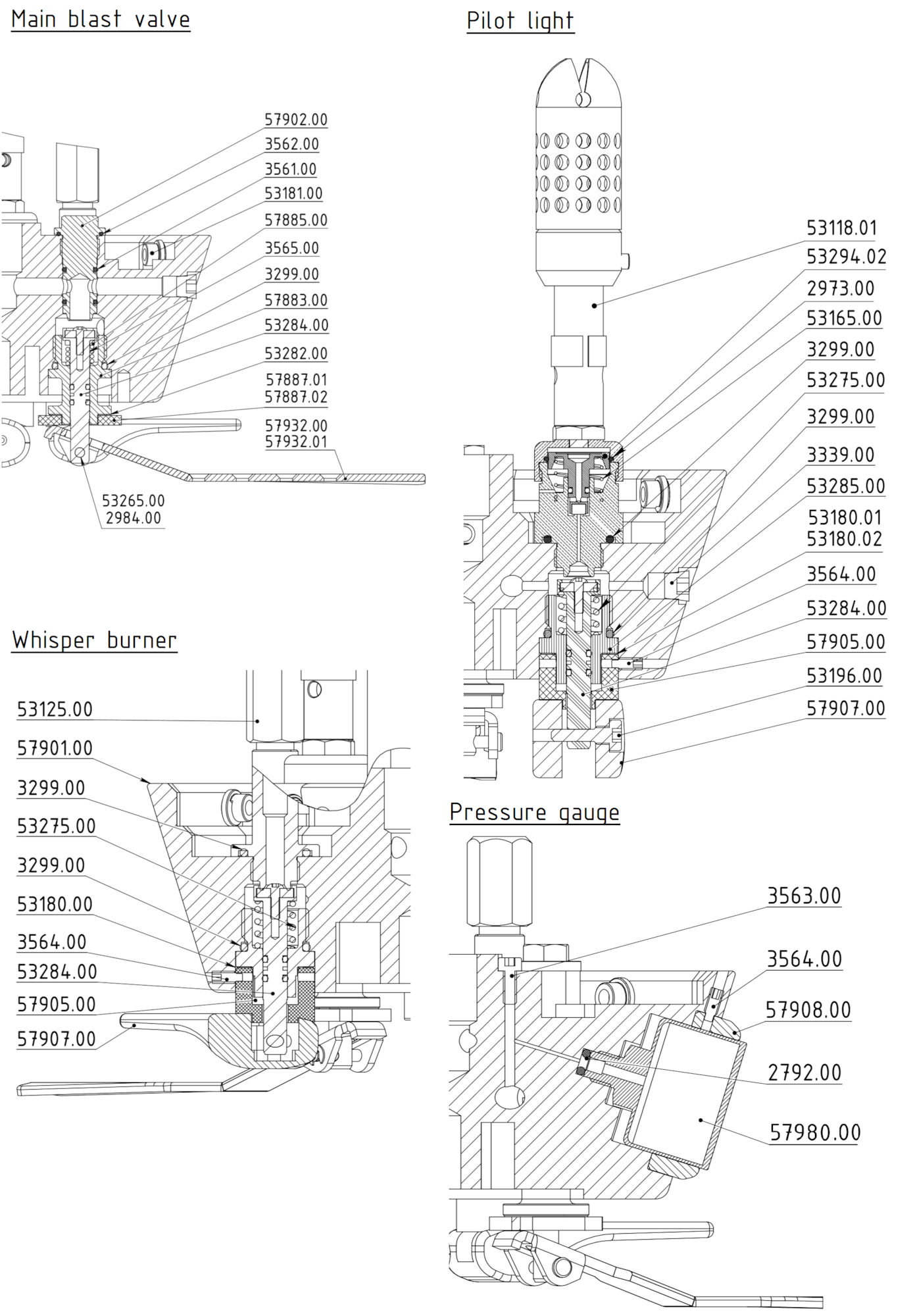

Download schema

Manifold assembly Sirius

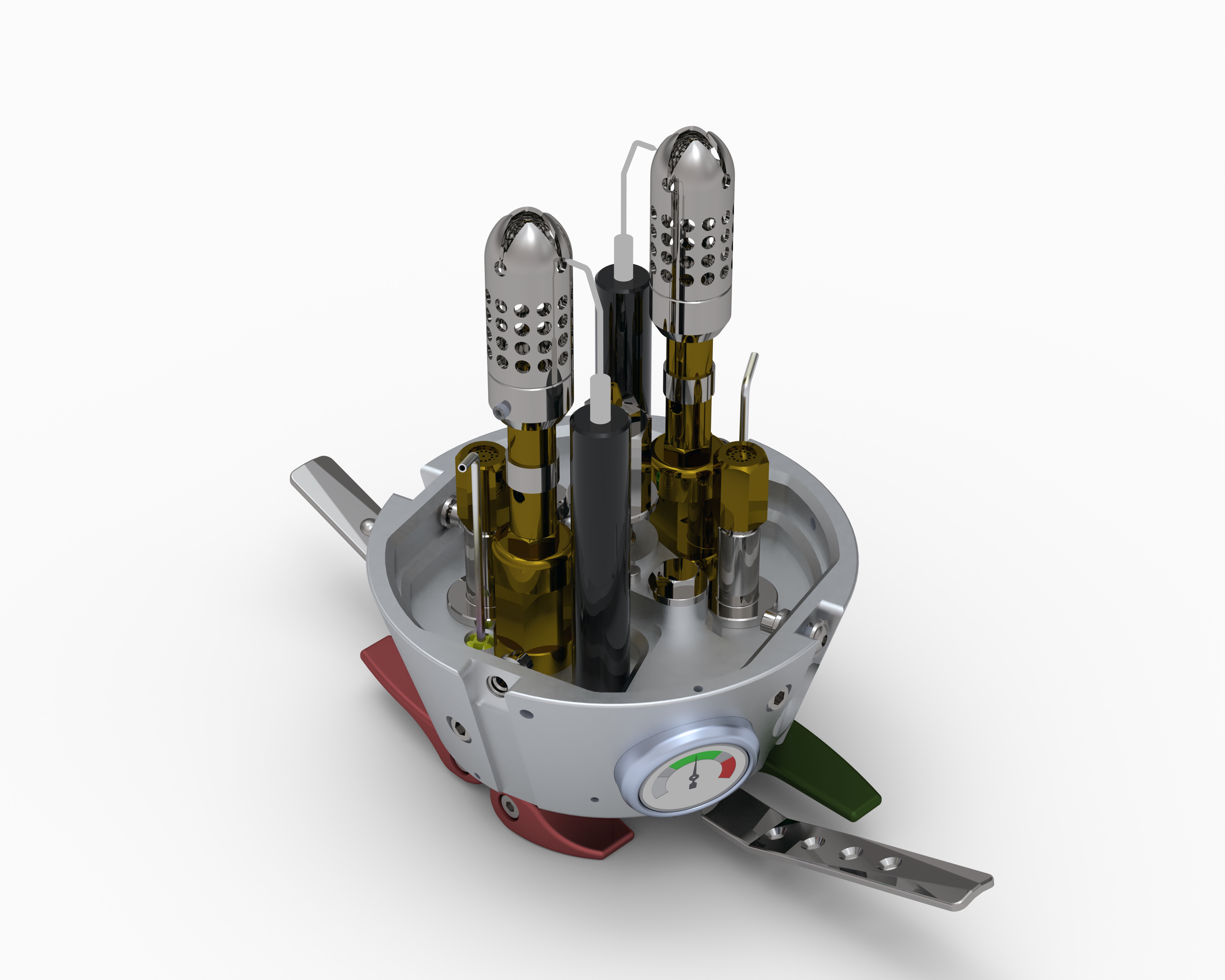

  • AXFjOOLk-B3_ndCnK7x3.jpg

    57900.00

    This part is included in assemblies:

    Content assembly:


    O-ring 3x2.4

    2972.00
    To be offered/pc

    O-ring 19.5x1.5

    2973.00
    To be offered/pc

    O-ring 19.5x1.5

    2973.00
    To be offered/pc

    Shaft retaining ring 3.2, stainless steel

    2984.00
    To be offered/pc

    O-ring 17.86x2.62

    3299.00
    To be offered/pc

    Socket head plug 1/8 BSP

    3339.00
    To be offered/pc

    O-ring 11.0x1.8

    3561.00
    To be offered/pc

    O-ring 16x1.5

    3562.00
    To be offered/pc

    M4x10 Hexagon socket head cap bolt, stainless steel

    3563.00
    To be offered/pc

    M4x10 Hexagon socket set bolt with dog point, stainless steel

    3564.00
    To be offered/pc

    Main valve spring

    3565.00
    To be offered/pc

    Piezoelectric ignition assembly Ignis / Sirius

    53114.00
    To be offered/pc

    Pilot burner Ignis Plus / Sirius - assembly

    53118.001
    To be offered/pc

    Whisper burner body

    53125.00
    To be offered/pc

    Vaporiser Spring

    53165.00
    To be offered/pc

    Lever washer 0.3mm

    53180.01
    To be offered/pc

    Lever washer 0.4 mm

    53180.02
    To be offered/pc

    Threaded insert M6 Ignis, Ignis Plus

    53181.00
    To be offered/pc

    Lever roll pin

    53196.00
    To be offered/pc

    Blast trigger pin

    53265.00
    To be offered/pc

    Whisper / pilot light valve spring

    53275.00
    To be offered/pc

    Vaporiser lower body Ignis Plus / Sirius

    53281.001
    To be offered/pc

    Whisper / pilot light stem assembly

    53284.00
    To be offered/pc

    Whisper / pilot light valve body

    53285.00
    To be offered/pc

    PR piston - liquid

    53294.02
    To be offered/pc

    Blast valve body Sirius

    57883.00
    To be offered/pc

    Blast valve spring washer Sirius

    57885.00
    To be offered/pc

    Blast valve washer 3 mm Sirius

    57887.01
    To be offered/pc

    Blast valve washer 4 mm Sirius

    57887.02
    To be offered/pc

    Manifold body Sirius

    57901.00
    To be offered/pc

    Blast valve plug Sirius

    57902.00
    To be offered/pc

    Whisper / pilot flame lever base, Sirius

    57905.00
    To be offered/pc

    Pilot light lever Sirius - green

    57906.01
    To be offered/pc

    Pilot light lever Sirius - red

    57906.02
    To be offered/pc

    Whisper lever Sirius - green

    57907.01
    To be offered/pc

    Whisper burner lever Sirius - red

    57907.02
    To be offered/pc

    Pressure gauge cover Sirius

    57908.00
    To be offered/pc

    Blast rigger lever, Sirius - left

    57932.00
    To be offered/pc

    Blast rigger lever, Sirius - right

    57932.01
    To be offered/pc

    Pressure gauge 0-25bar Ignis / Sirius

    57980.00
    To be offered/pc
