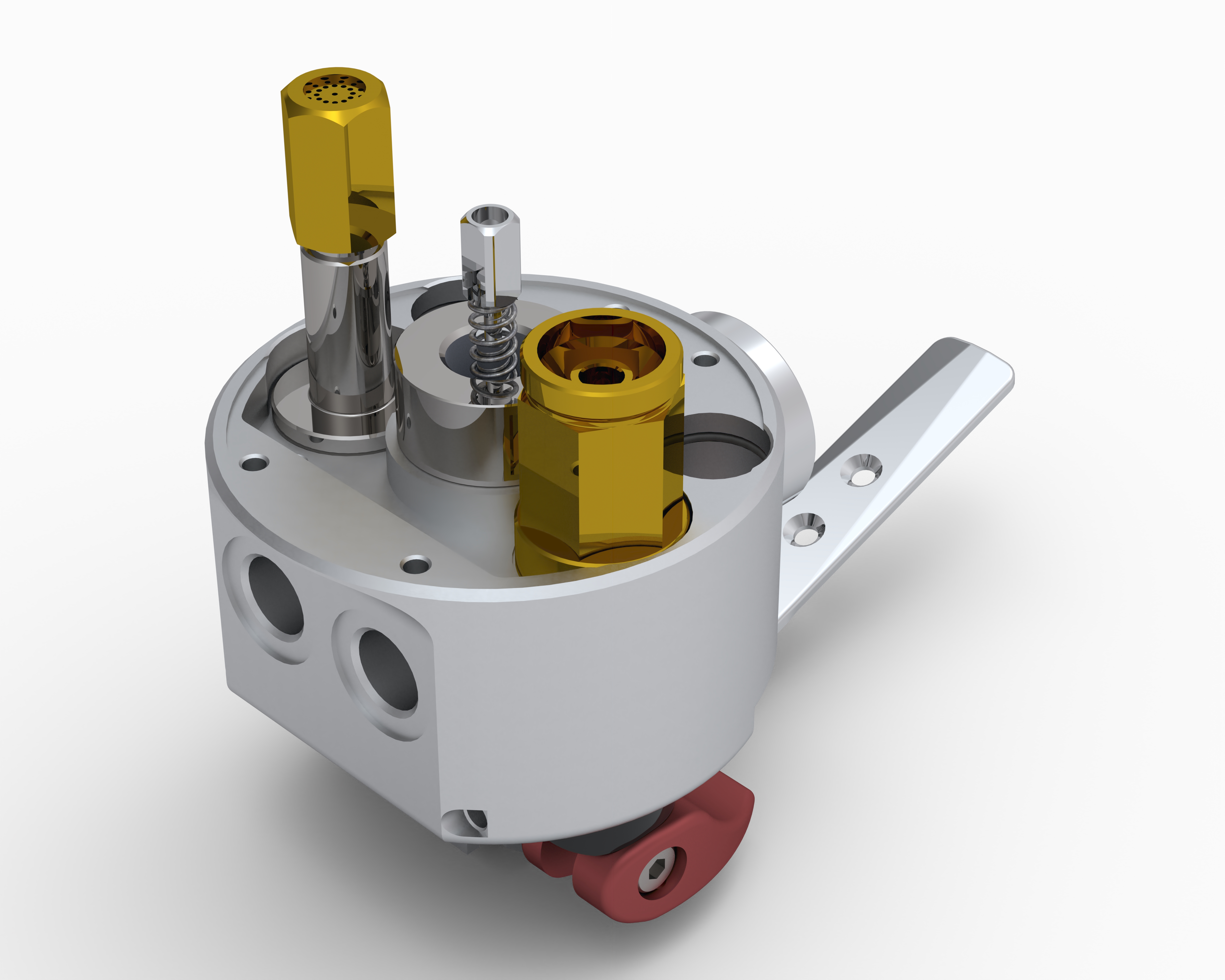

Manifold assembly Ignis Plus - left
33053116.011
33053116.011

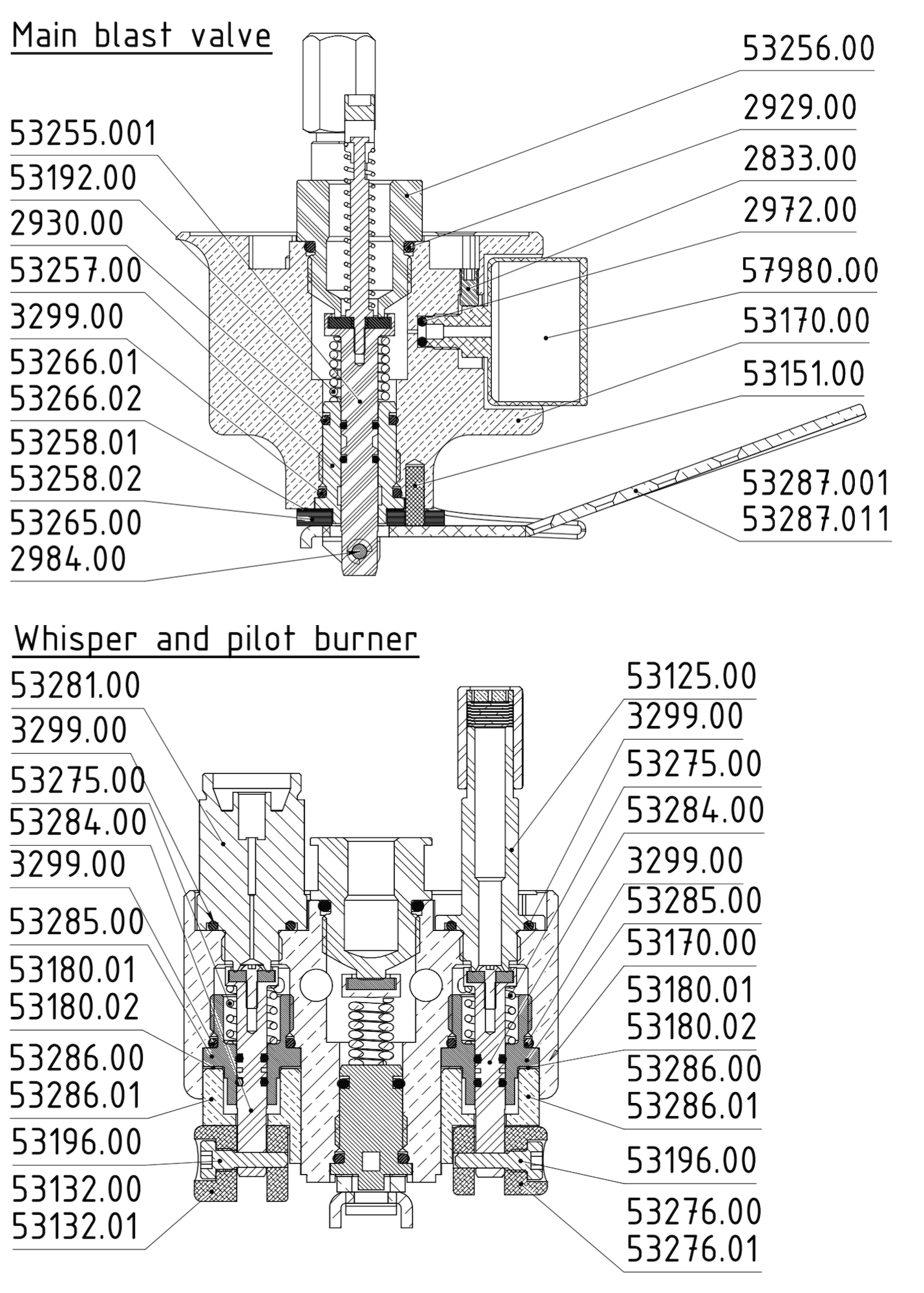

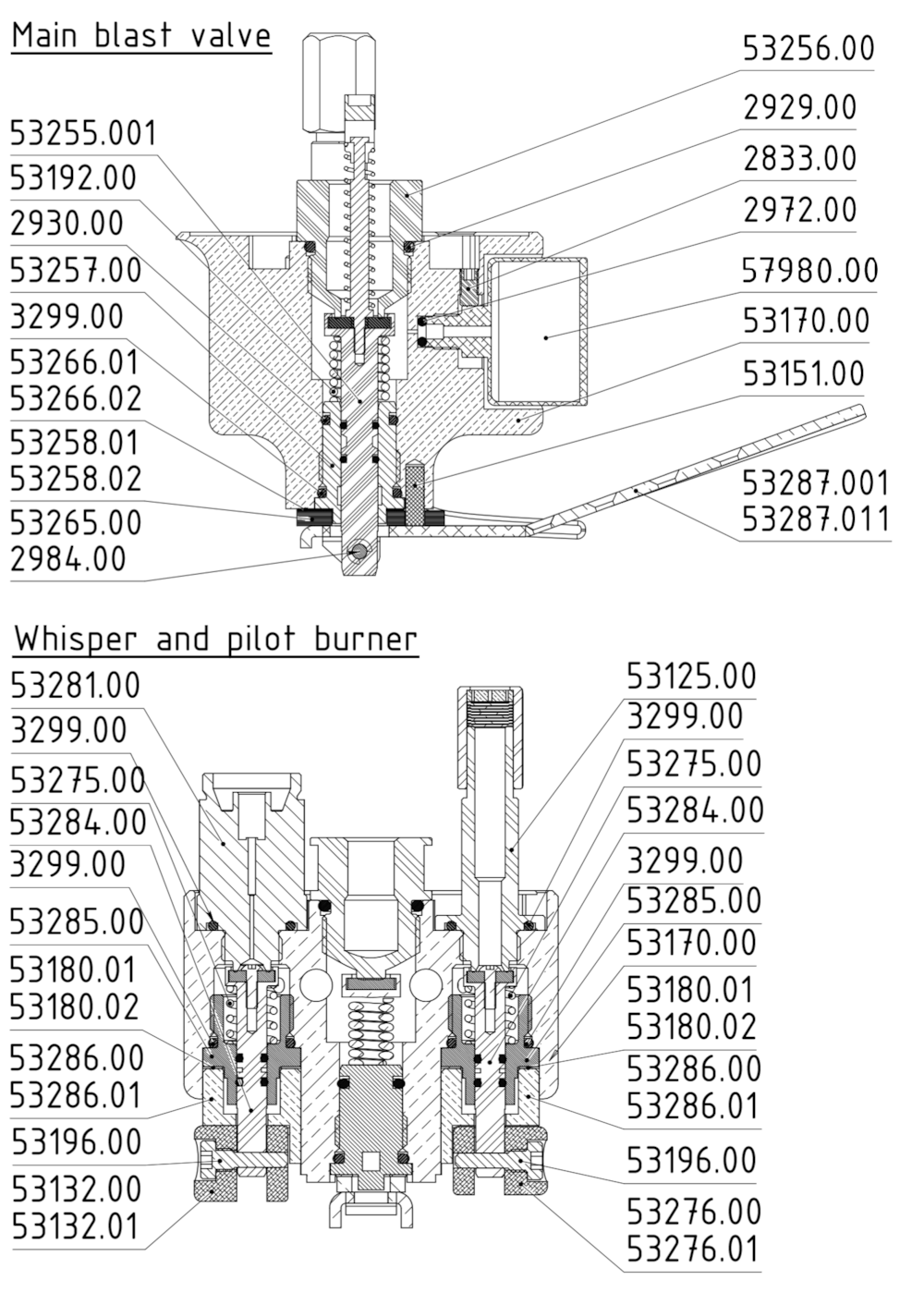

Download schema

Manifold assembly Ignis Plus - left

  • 33053116.011

    53116.011

    This part is included in assemblies:

    Content assembly:

    M5x10 Hexagon socket set bolt, stainless steel

    M5x10 Hexagon socket set bolt, stainless steel

    2833.00
    To be offered/pc
    O-ring 24x3

    O-ring 24x3

    2929.00
    To be offered/pc
    O-ring 16x2.5

    O-ring 16x2.5

    2930.00
    To be offered/pc
    O-ring 3x2.4

    O-ring 3x2.4

    2972.00
    To be offered/pc
    O-ring 19.5x1.5

    O-ring 19.5x1.5

    2973.00
    To be offered/pc
    M5x10 Hexagon socket set bolt with cone point, stainless steel

    M5x10 Hexagon socket set bolt with cone point, stainless steel

    2974.00
    To be offered/pc
    Shaft retaining ring 3.2, stainless steel

    Shaft retaining ring 3.2, stainless steel

    2984.00
    To be offered/pc
    O-ring 17.86x2.62

    O-ring 17.86x2.62

    3299.00
    To be offered/pc
    Whisper burner body

    Whisper burner body

    53125.00
    To be offered/pc
    PL lever Ignis, Ignis Plus - left

    PL lever Ignis, Ignis Plus - left

    53132.00
    To be offered/pc
    Blast valve shock absorber

    Blast valve shock absorber

    53151.00
    To be offered/pc
    Manifold body Ignis, Ignis Plus

    Manifold body Ignis, Ignis Plus

    53170.00
    To be offered/pc
    Blast valve spring Ignis

    Blast valve spring Ignis

    53192.00
    To be offered/pc
    Lever roll pin

    Lever roll pin

    53196.00
    To be offered/pc
    Blast valve stem Ignis Plus - assembly

    Blast valve stem Ignis Plus - assembly

    53255.001
    To be offered/pc
    Saddle coil ring Ignis, Ignis Plus

    Saddle coil ring Ignis, Ignis Plus

    53256.00
    To be offered/pc
    Blast valve body Ignis

    Blast valve body Ignis

    53257.00
    To be offered/pc
    Main Blast Valve washer 3mm Ignis, Ignis Plus

    Main Blast Valve washer 3mm Ignis, Ignis Plus

    53258.01
    To be offered/pc
    Main Blast Valve washer 4mm Ignis, Ignis Plus

    Main Blast Valve washer 4mm Ignis, Ignis Plus

    53258.02
    To be offered/pc
    Blast trigger pin

    Blast trigger pin

    53265.00
    To be offered/pc
    Whisper burner lever - left

    Whisper burner lever - left

    53273.00
    To be offered/pc
    Whisper / pilot light valve spring

    Whisper / pilot light valve spring

    53275.00
    To be offered/pc
    Vaporiser lower body Ignis Plus / Sirius

    Vaporiser lower body Ignis Plus / Sirius

    53281.001
    To be offered/pc
    Whisper / pilot light stem assembly

    Whisper / pilot light stem assembly

    53284.00
    To be offered/pc
    Whisper / pilot light valve body

    Whisper / pilot light valve body

    53285.00
    To be offered/pc
    Lever pad Ignis, Ignis Plus - left

    Lever pad Ignis, Ignis Plus - left

    53286.00
    To be offered/pc
    Lever pad Ignis, Ignis Plus - right

    Lever pad Ignis, Ignis Plus - right

    53286.01
    To be offered/pc
    Main blast valve lever Ignis Plus - left

    Main blast valve lever Ignis Plus - left

    53287.001
    To be offered/pc
    Pressure gauge 0-25bar Ignis / Sirius

    Pressure gauge 0-25bar Ignis / Sirius

    57980.00
    To be offered/pc
