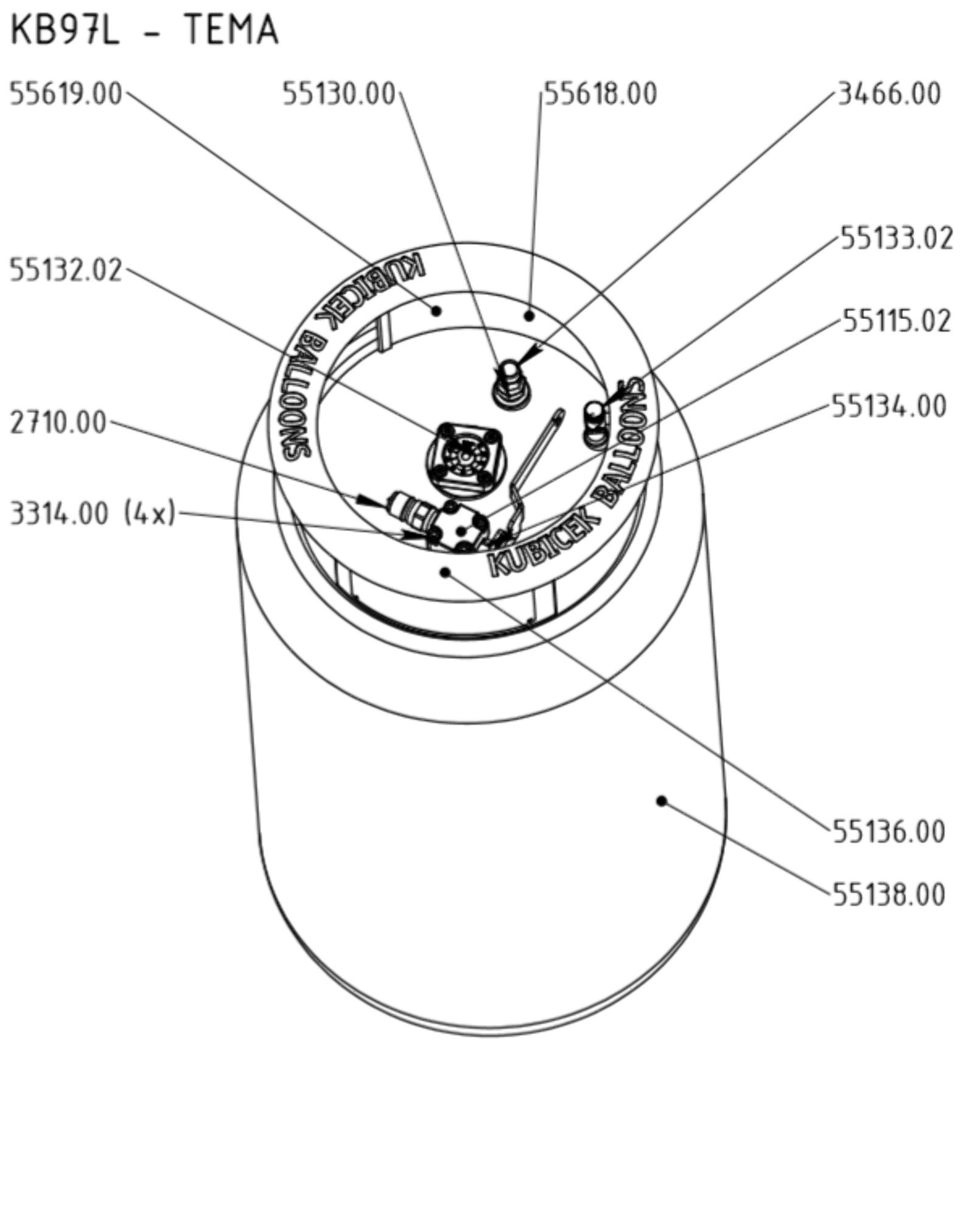

KB97L Fuel cylinder - S, TEMA
KB97L Fuel cylinder - S, TEMA
55120.022

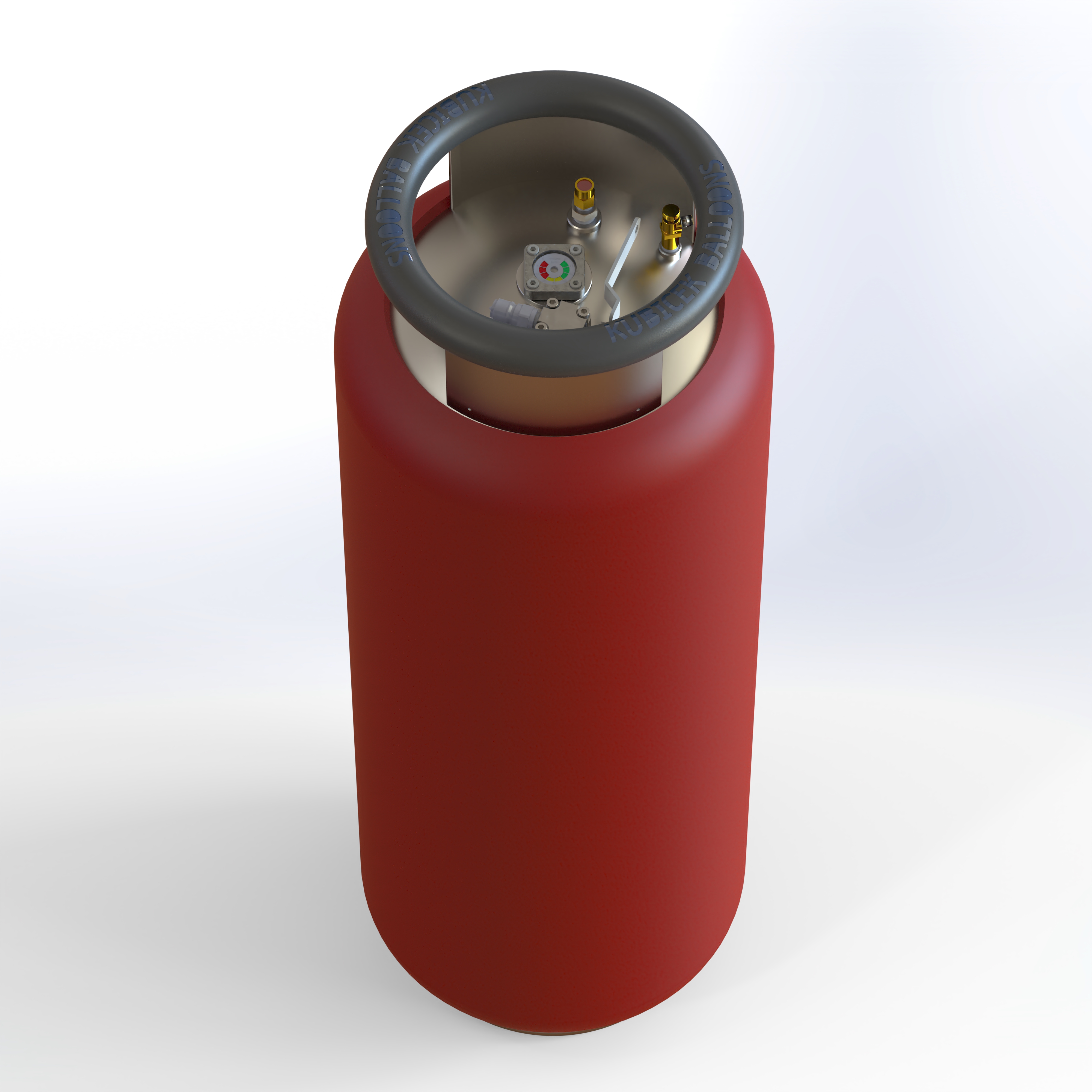

Standard, 97L-King size, fuel cylinder with TEMA liquid connection.
This part is included in assemblies:
Assembly content:
Blind rivet 3x6, stainless steel
2613.00
To be offered/pc
TEMA 3820 Male Niple
2710.00
To be offered/pc
M6x20 Hexagon socket head cap bolt, stainless steel
2735.00
To be offered/pc
M6x55 Hexagon socket head cap bolt, stainless steel
3314.00
To be offered/pc
Fuel tank PRV
3466.00
To be offered/pc
Fuel gauge sealing
3499.00
To be offered/pc
TEMA adaptor block
55115.02
To be offered/pc
PRV holder
55130.00
To be offered/pc
Level gauge - KB97L
55132.02
To be offered/pc
Fix liquid level fill gauge – KB97L
55133.02
To be offered/pc
Cylinder ring cover
55136.00
To be offered/pc
Cylinder foam, KB97L
55140.02
To be offered/pc
Fuel cylinder warning label
55618.00
To be offered/pc
Fuel cylinder FAA label
55619.00
To be offered/pc
