KB85L Fuel cylinder - S, TEMA
45055120.032
45055120.032

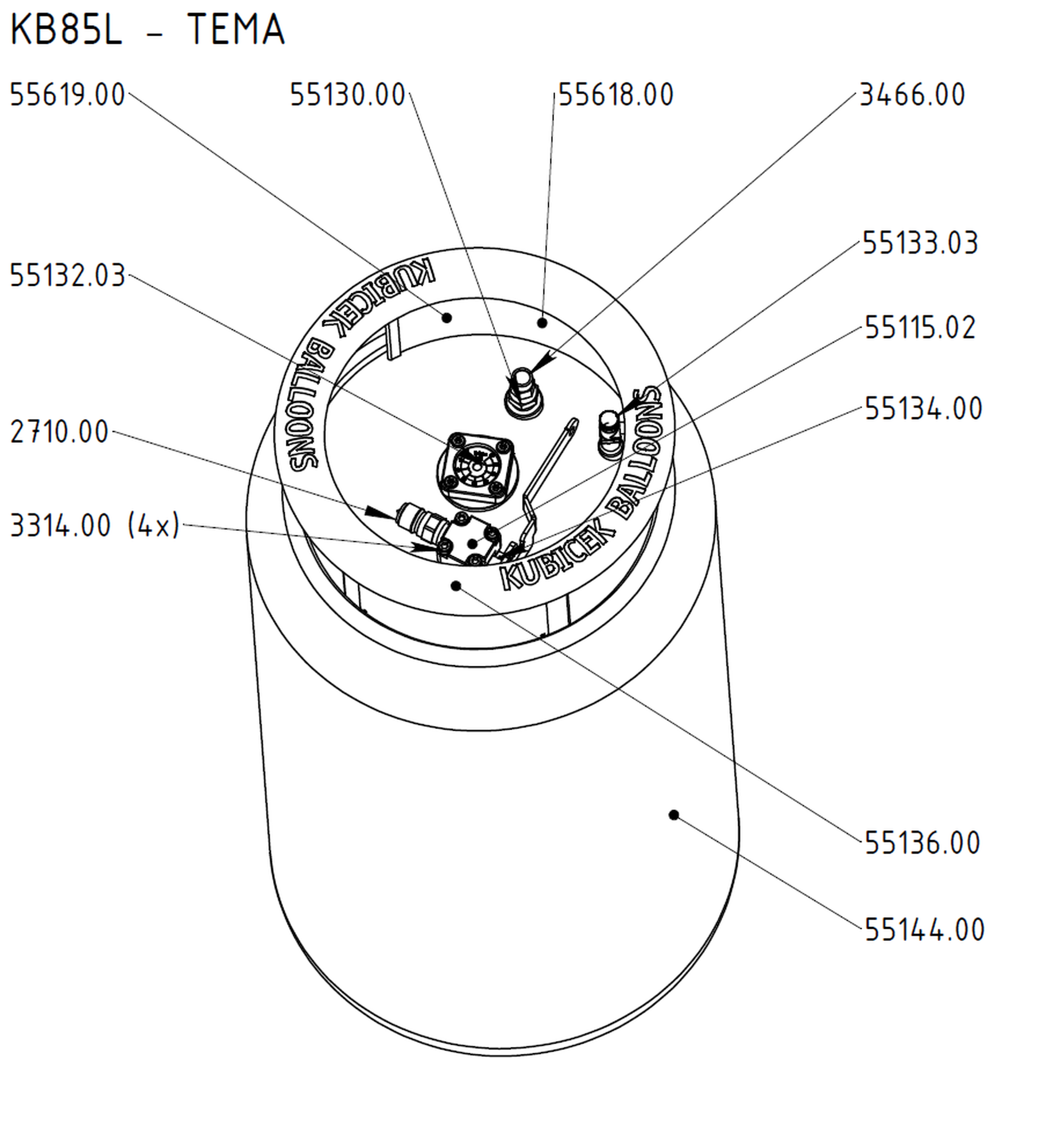

Download schema

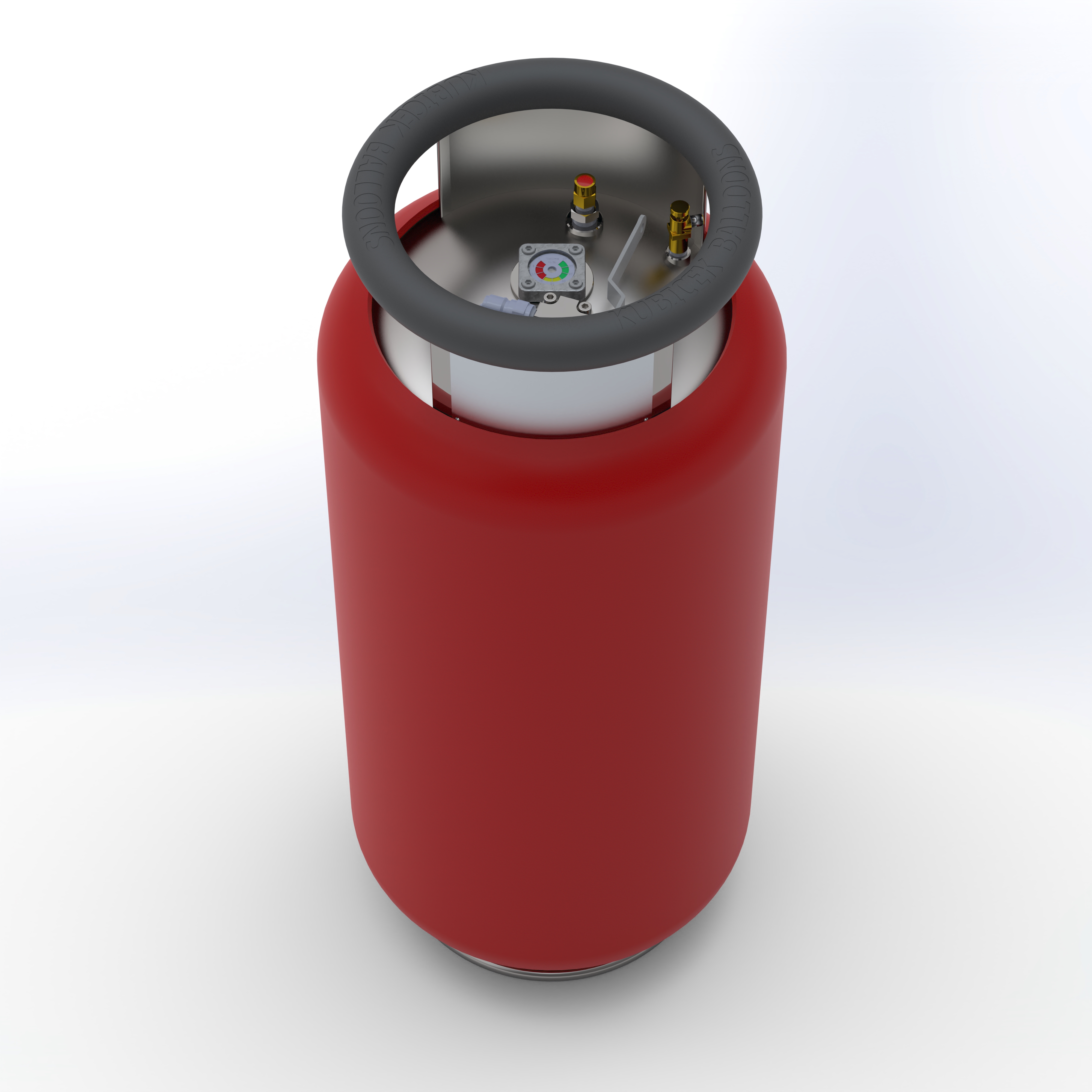

KB85L Fuel cylinder - S, TEMA

  • 45055120.032

    55120.032

    Standard, 85L-Prince size, with TEMA liquid connection.

    This part is included in assemblies:

    Content assembly:

    2302613.00

    Blind rivet 3x6, stainless steel

    2613.00
    To be offered/pc
    2322710.00

    TEMA 3820 Male Niple

    2710.00
    To be offered/pc
    2302735.00

    M6x20 Hexagon socket head cap bolt, stainless steel

    2735.00
    To be offered/pc
    2362765.00

    Bonded Washer 16.7x24x1.5

    2765.00
    To be offered/pc
    2303314.00

    M6x55 Hexagon socket head cap bolt, stainless steel

    3314.00
    To be offered/pc
    2323466.00

    Fuel tank PRV

    3466.00
    To be offered/pc
    2363499.00

    Fuel gauge sealing

    3499.00
    To be offered/pc
    35055115.02

    TEMA adaptor block

    55115.02
    To be offered/pc
    35055130.00

    PRV holder

    55130.00
    To be offered/pc
    35055132.03

    Level gauge - KB85L

    55132.03
    To be offered/pc
    35055133.03

    Fix liquid level fill gauge – KB85L

    55133.03
    To be offered/pc
    35055136.00

    Cylinder ring cover

    55136.00
    To be offered/pc
    35055140.03

    Cylinder foam, KB85L

    55140.03
    To be offered/pc
    35055144.00

    Cylinder cover (excludes foam) - KB85L

    55144.00
    35055146.00

    Fuel cylinder ball valve - assembly

    55146.00
    To be offered/pc
    35055618.00

    Fuel cylinder warning label

    55618.00
    To be offered/pc
    35055619.00

    Fuel cylinder FAA label

    55619.00
    To be offered/pc
