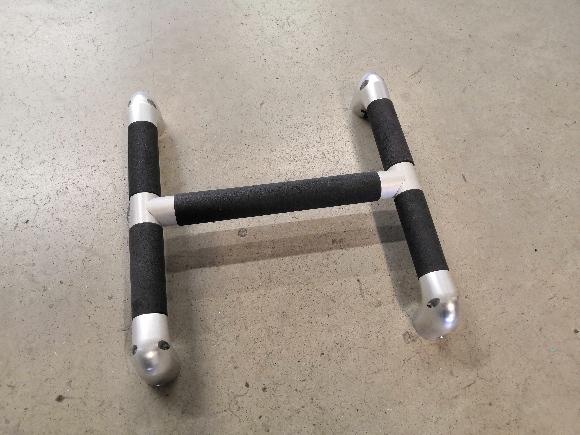

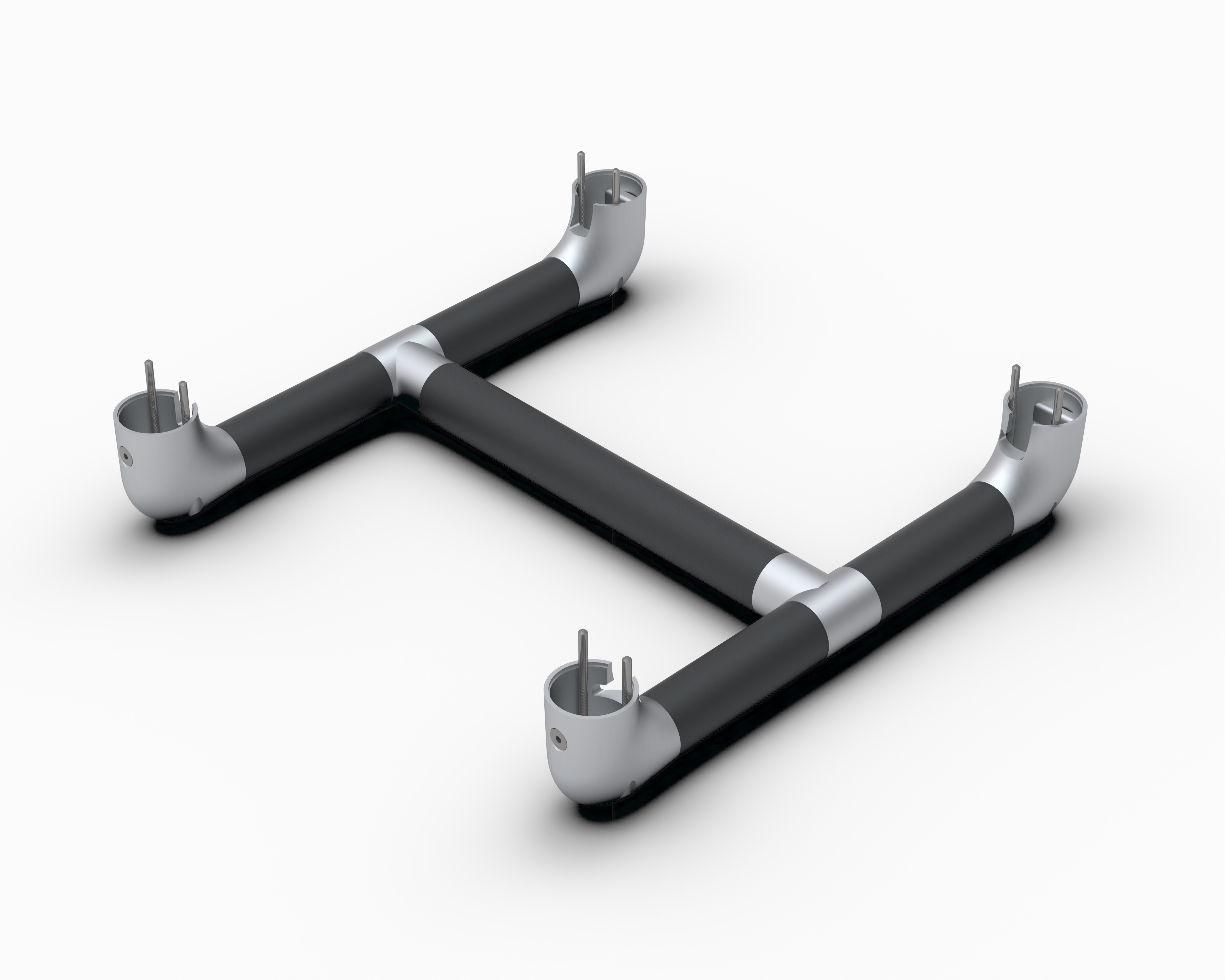

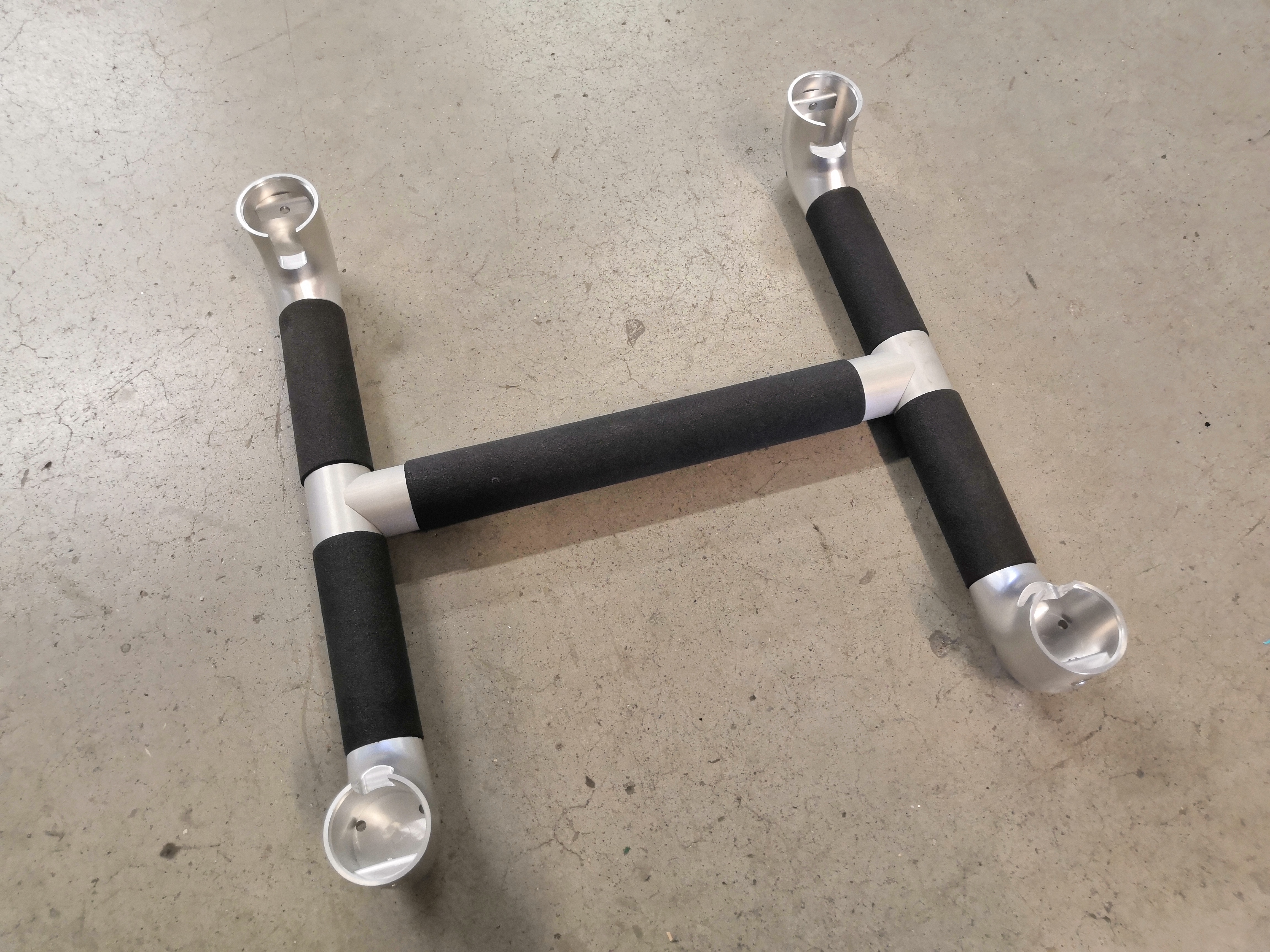

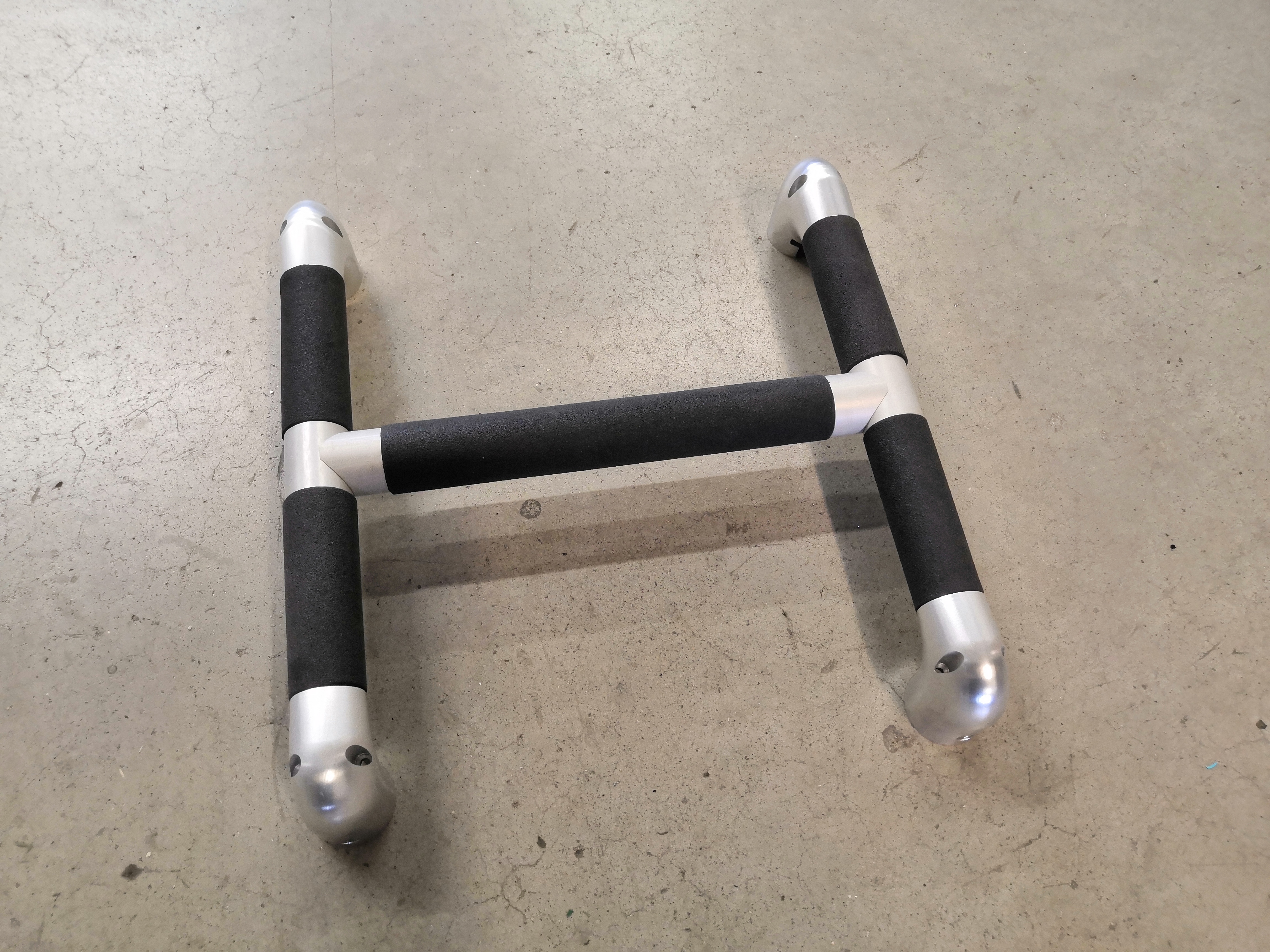

Ignis Plus burner handle - 4
33053130.031
33053130.031

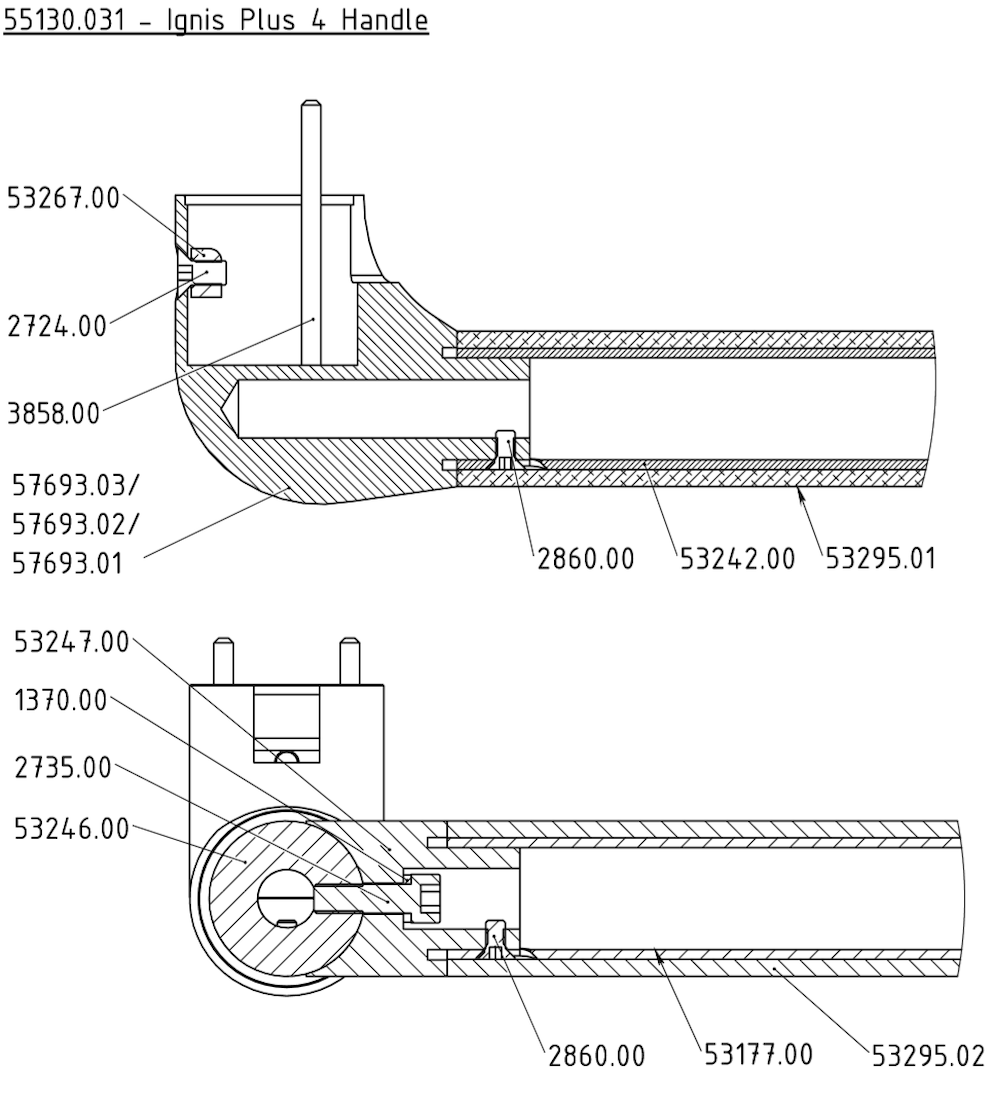

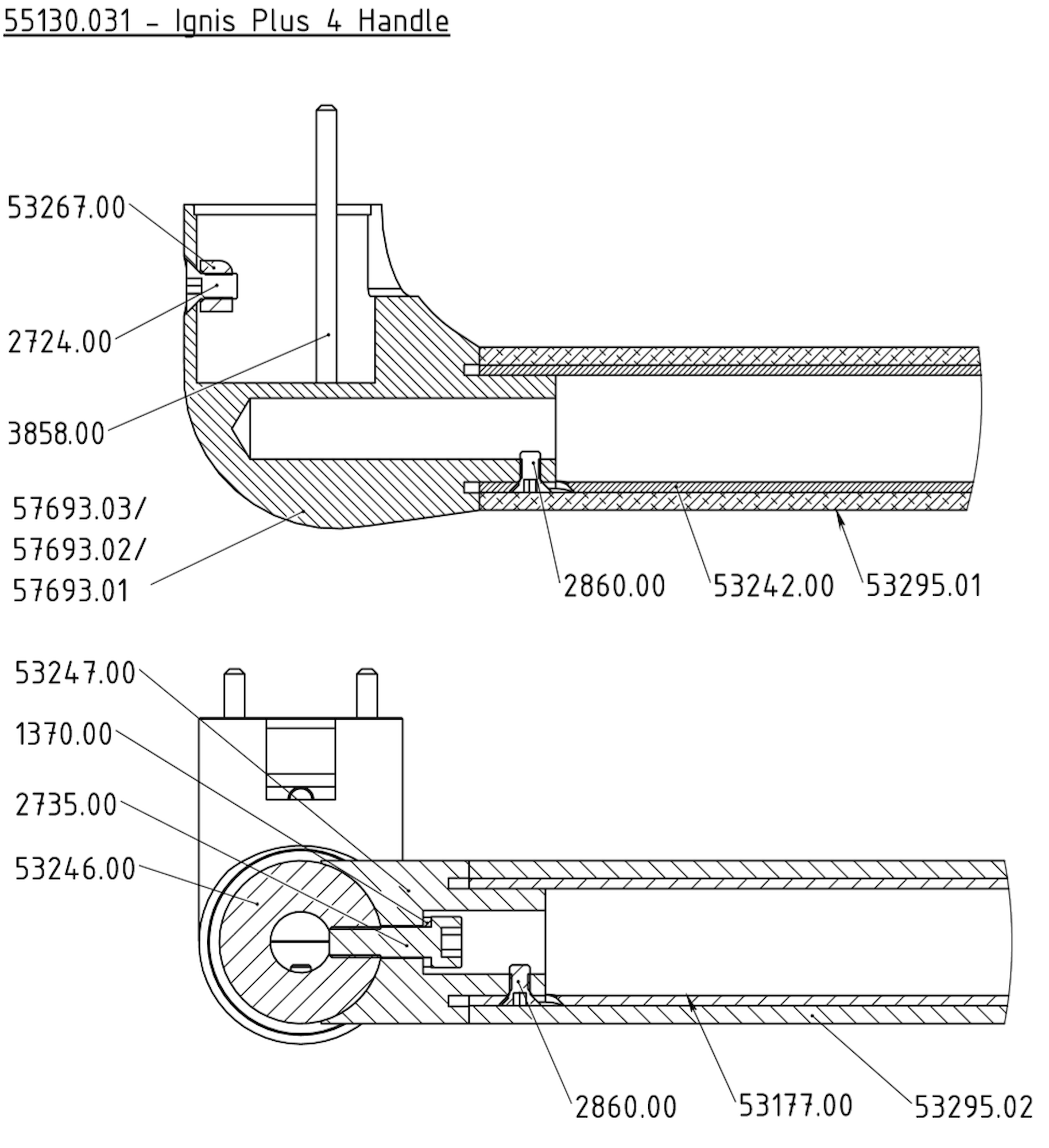

Download schema

Ignis Plus burner handle - 4

  • AXC-bc00AYQsPRGStu-B.jpg
  • AXC-baQWAYQsPRGStu8w.jpg
  • AXC-bbpdAYQsPRGStu8x.jpg

    53130.031

    This part is included in assemblies:

    To be offered /pc

    Content assembly:


    M6 spring washer, stainless steel

    1370.00
    To be offered/pc

    M5x10 Hexagon socket countersunk head cap bolt

    2724.00
    To be offered/pc

    M6x20 Hexagon socket head cap bolt, stainless steel

    2735.00
    To be offered/pc

    M4x8 Hexagon socket countersunk head cap bolt, stainless steel

    2860.00
    To be offered/pc

    Handle Ignis, Ignis Plus

    53177.00
    To be offered/pc

    Short handle Ignis, Ignis Plus - 3

    53242.00
    To be offered/pc

    Main handle connection

    53246.00
    To be offered/pc

    T-shape handle connection Ignis, Ignis Plus

    53247.00
    To be offered/pc

    Lever stop

    53267.00
    To be offered/pc

    Ignis, Ignis Plus handle grip - type 01

    53295.01
    To be offered/pc

    Ignis, Ignis Plus handle grip - type 02

    53295.02
    To be offered/pc

    Handle end w/o lock - Ignis Plus

    57693.03
    To be offered/pc
