Ignis Plus burner handle - 2

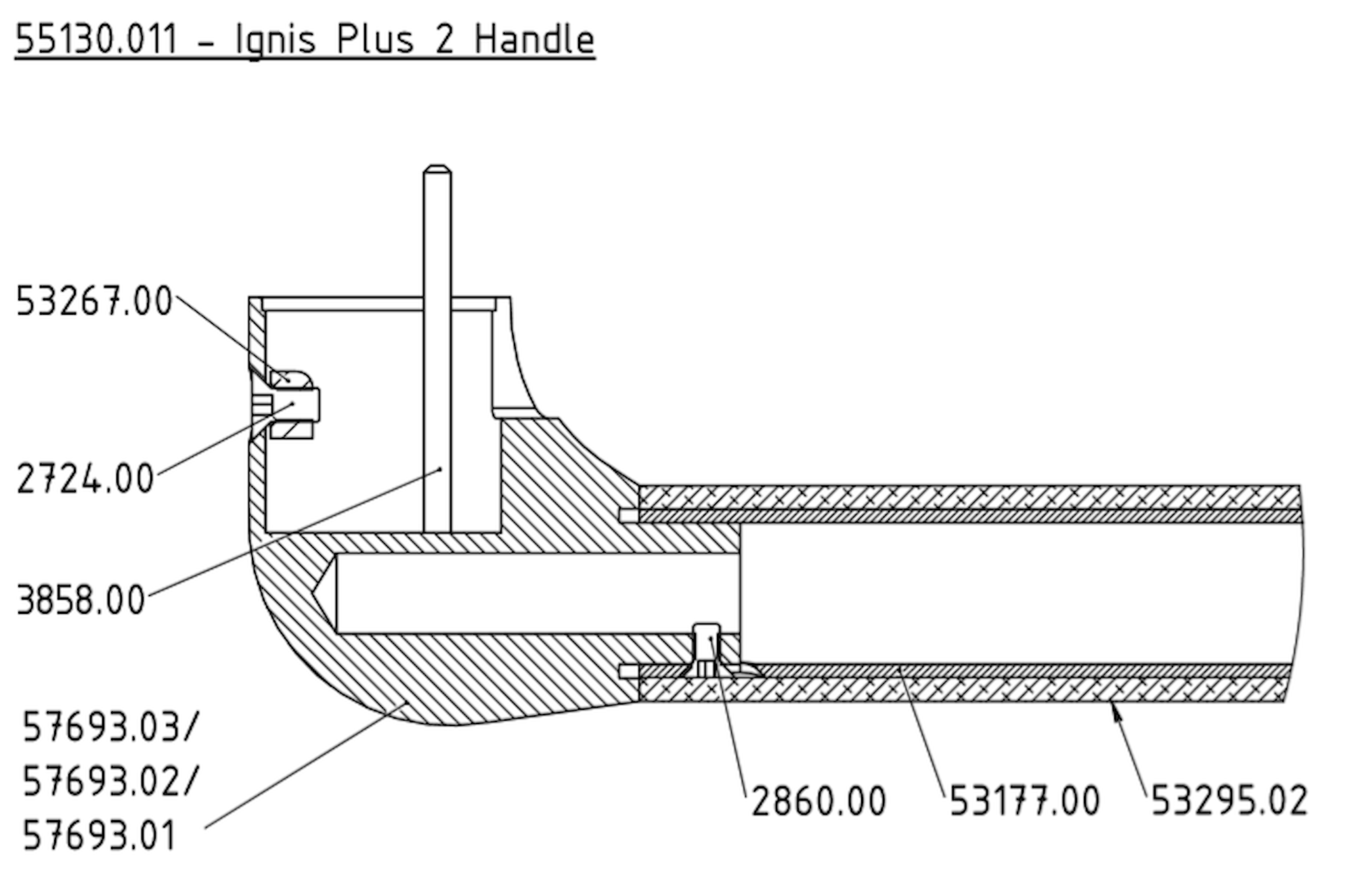

Download schema

Ignis Plus burner handle - 2

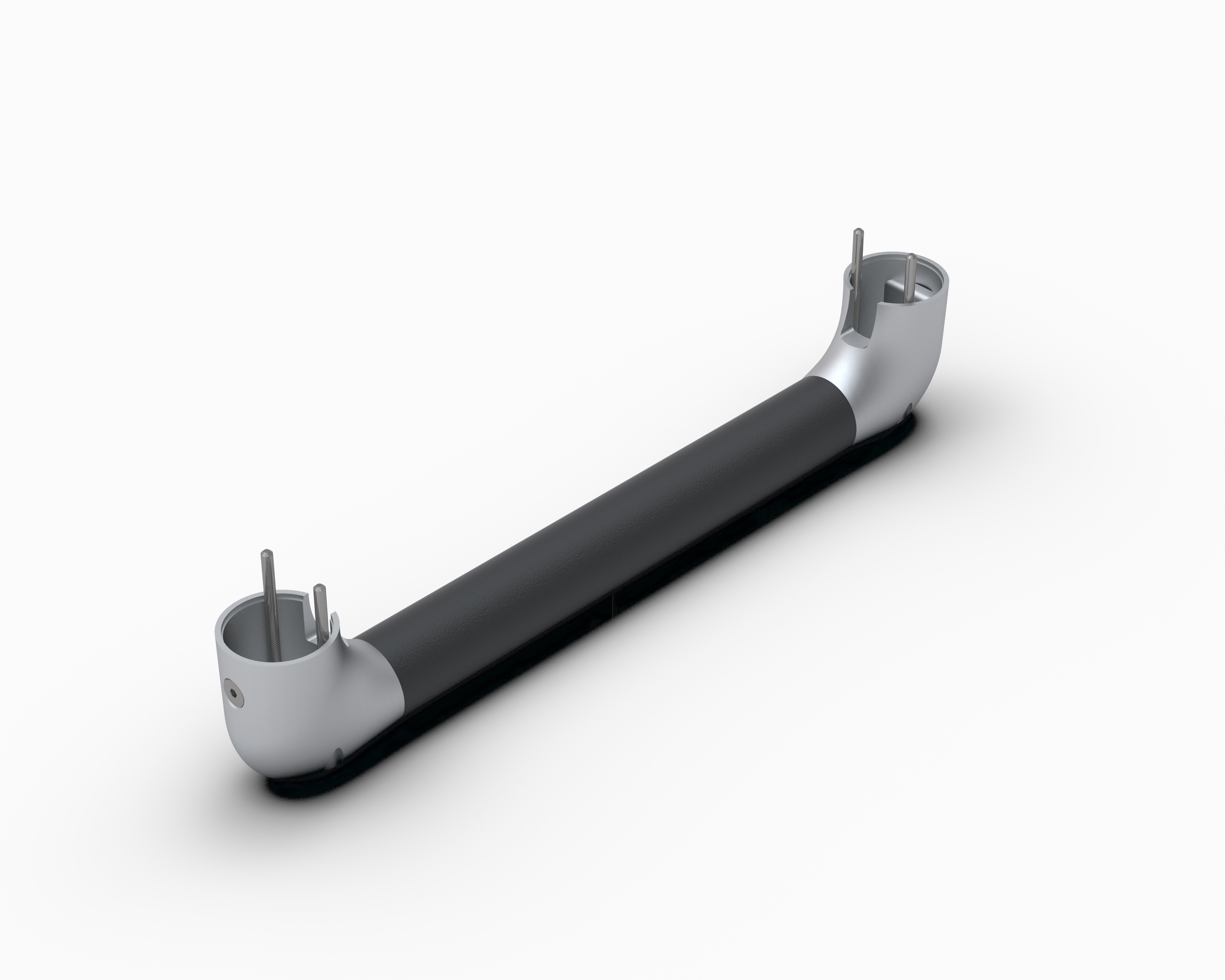

  • AXC-bXEwAYQsPRGStu7h.jpg

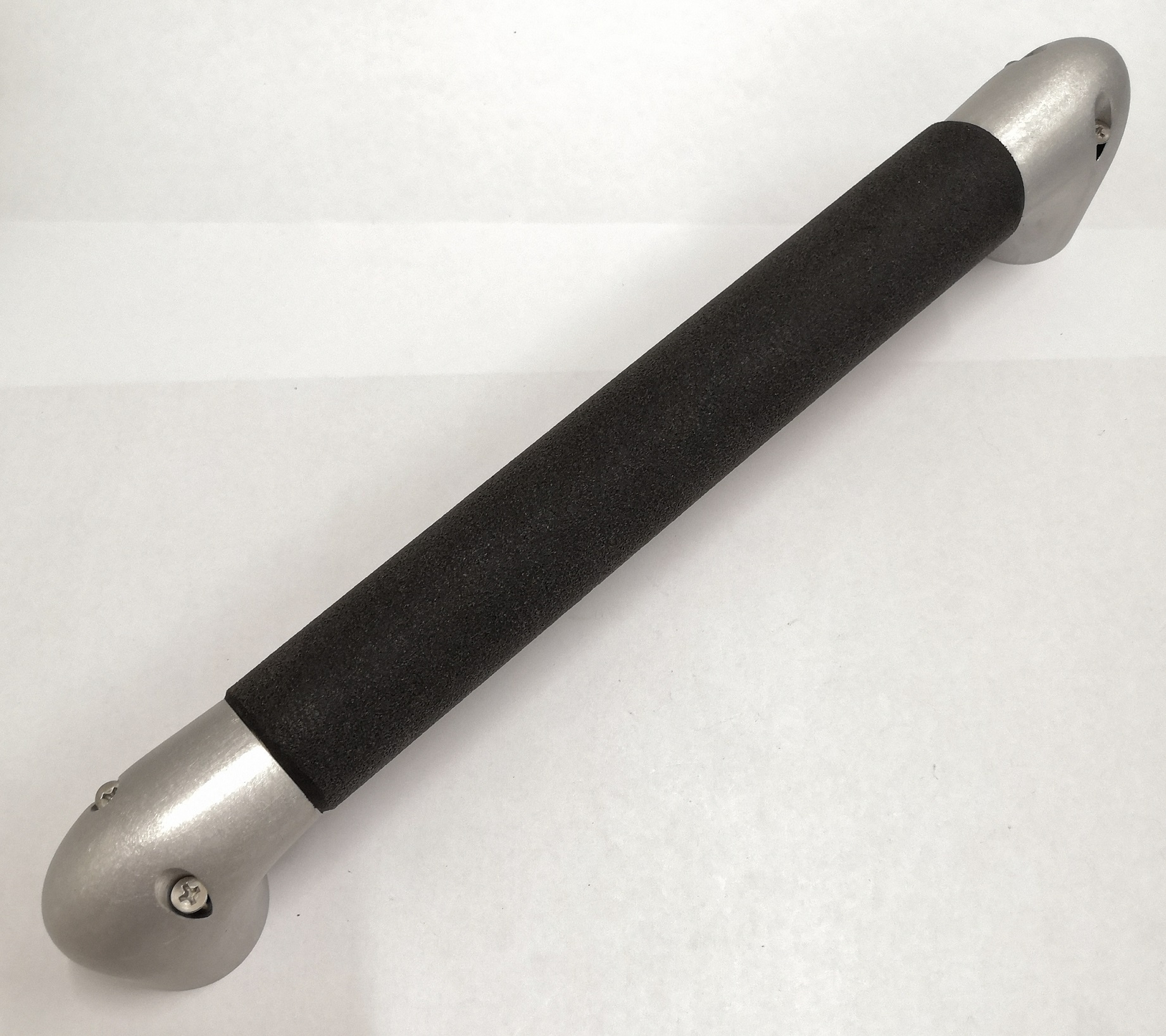

  • AXC-bYZ9AYQsPRGStu7i.jpg

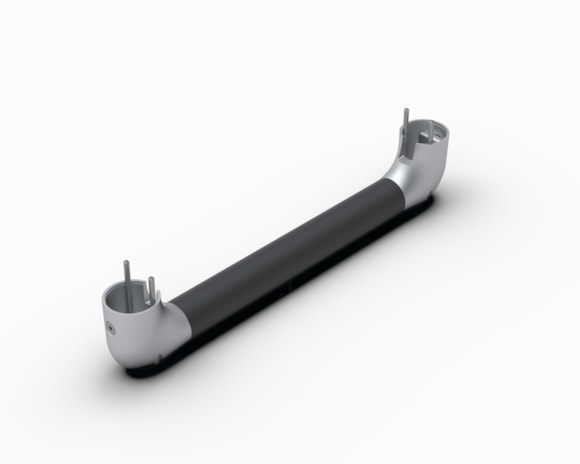

    53130.011

    This part is included in assemblies:

    To be offered /pc

    Assembly content:

    M5x10 Hexagon socket countersunk head cap bolt

    M5x10 Hexagon socket countersunk head cap bolt

    2724.00
    To be offered/pc
    M4x8 Hexagon socket countersunk head cap bolt, stainless steel

    M4x8 Hexagon socket countersunk head cap bolt, stainless steel

    2860.00
    To be offered/pc
    M4x50 Cross recessed raised countersunk phillips head screw, stainless steel

    M4x50 Cross recessed raised countersunk phillips head screw, stainless steel

    3512.00
    To be offered/pc
    Handle Ignis, Ignis Plus

    Handle Ignis, Ignis Plus

    53177.00
    To be offered/pc
    Lever stop

    Lever stop

    53267.00
    To be offered/pc
    Ignis, Ignis Plus handle grip - type 02

    Ignis, Ignis Plus handle grip - type 02

    53295.02
    To be offered/pc
    Handle end w/o lock - Ignis Plus

    Handle end w/o lock - Ignis Plus

    57693.03
    To be offered/pc
