• IGNIS Plus burner - 4 units
IGNIS Plus burner - 4 units
43053600.001
43053600.001

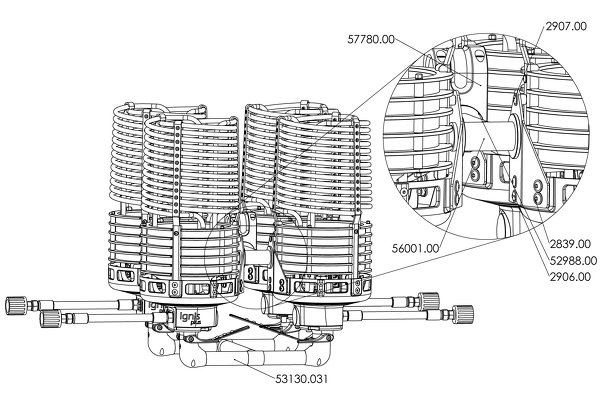

Download schema

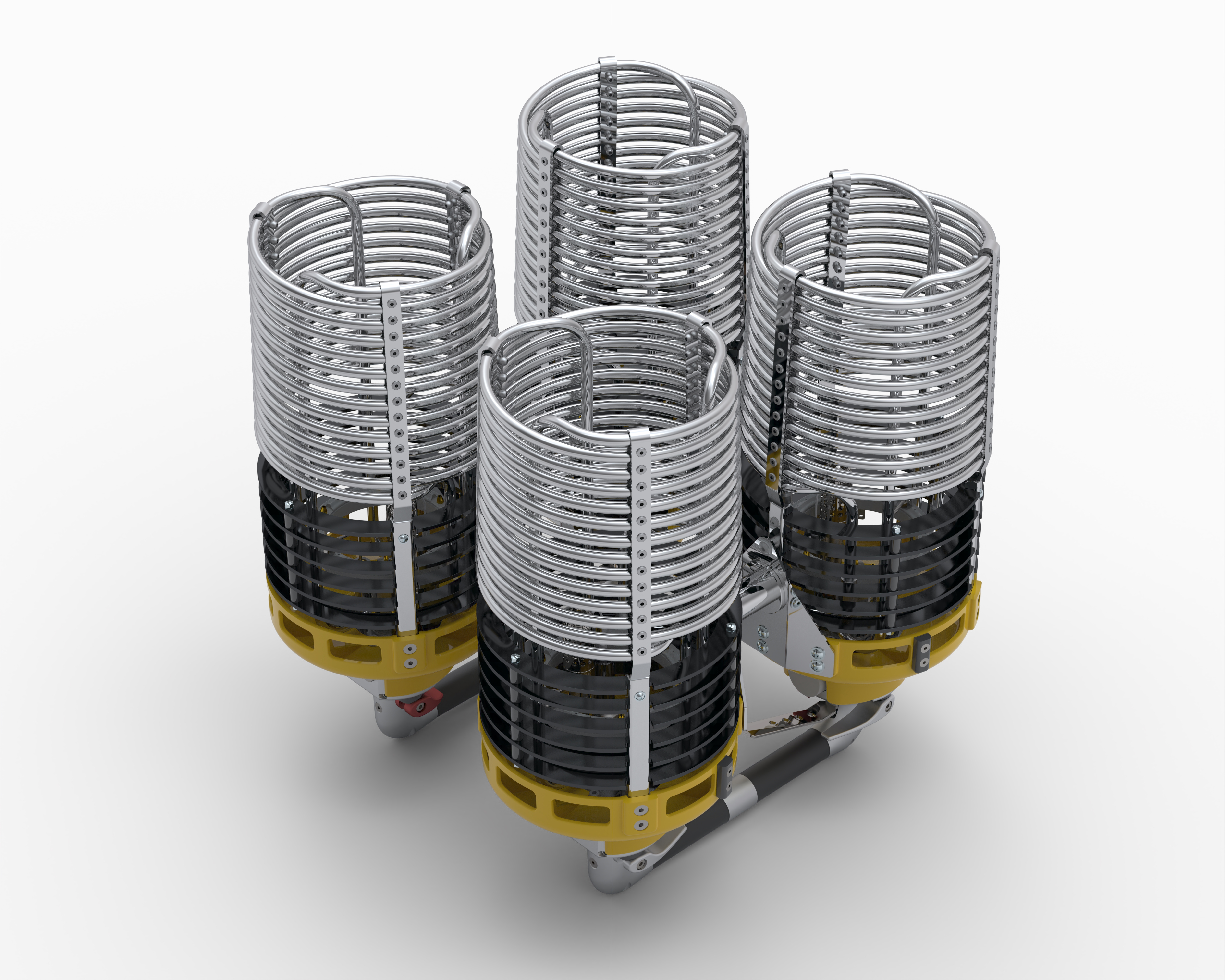

IGNIS Plus burner - 4 units

  • AXCt6PNrAYQsPRGSmkKF.jpg

    56000.001

    This part is included in assemblies:

    Content assembly:


    M6 spring washer, stainless steel

    1370.00
    To be offered/pc

    M12 Spring disc washer

    2734.00
    To be offered/pc

    M6x20 Hexagon socket head cap bolt, stainless steel

    2735.00
    To be offered/pc

    M6x20 Flange button head hexagon socket cap bolt, Stainless steel

    2839.00
    To be offered/pc

    Gimbal block disc washer 2mm

    52935.00
    To be offered/pc

    Gimbal block disc washer 2.5mm

    52935.01
    To be offered/pc

    Gimbal block disc washer 3mm

    52935.02
    To be offered/pc

    Gimbal block body - Ignis 3,4

    52983.00
    To be offered/pc

    Gimbal block bottom/top - Ignis 3, 4

    52984.00
    To be offered/pc

    Gimbal block friction saddle

    52988.00
    To be offered/pc

    Gimbal friction washer Trio/Quad

    53031.00
    To be offered/pc

    Burner unit Ignis Plus - left, one fuel hose system

    53115.011

    Burner unit Ignis Plus - right, one fuel hose system

    53115.021

    Ignis Plus burner handle - 4

    53130.031
    To be offered/pc

    Burner bracket - Ignis 4 units

    56001.00
    To be offered/pc

    M6x10 Hexagon socket head cap bolt, stainless steel

    689.00
    To be offered/pc
