  • IGNIS Plus burner - 3 units
IGNIS Plus burner - 3 units
43053101.001
43053101.001

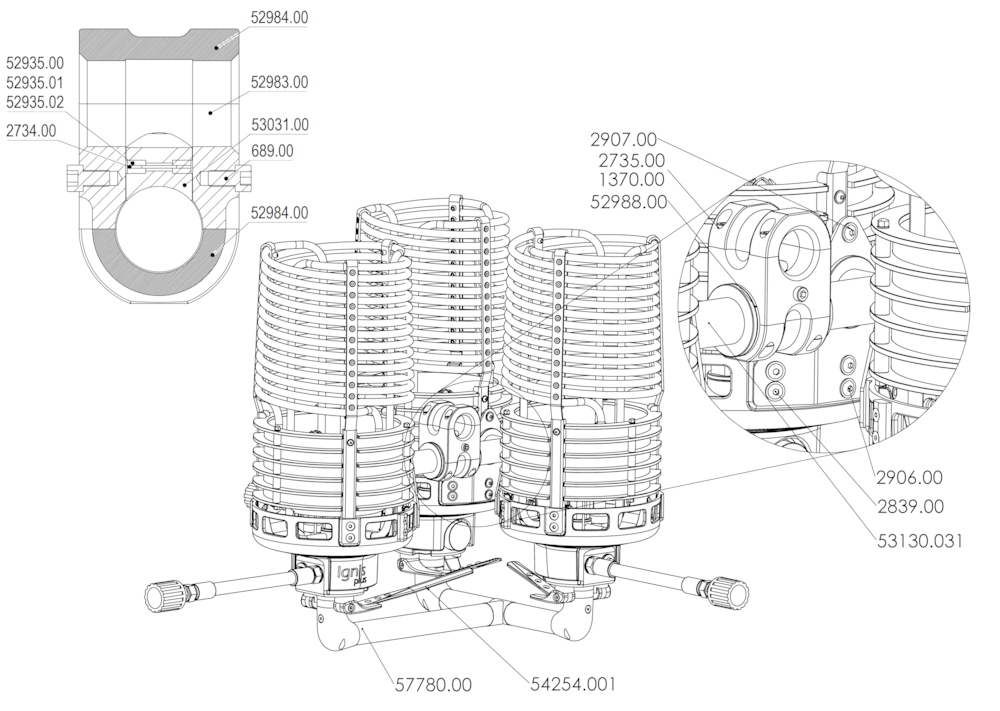

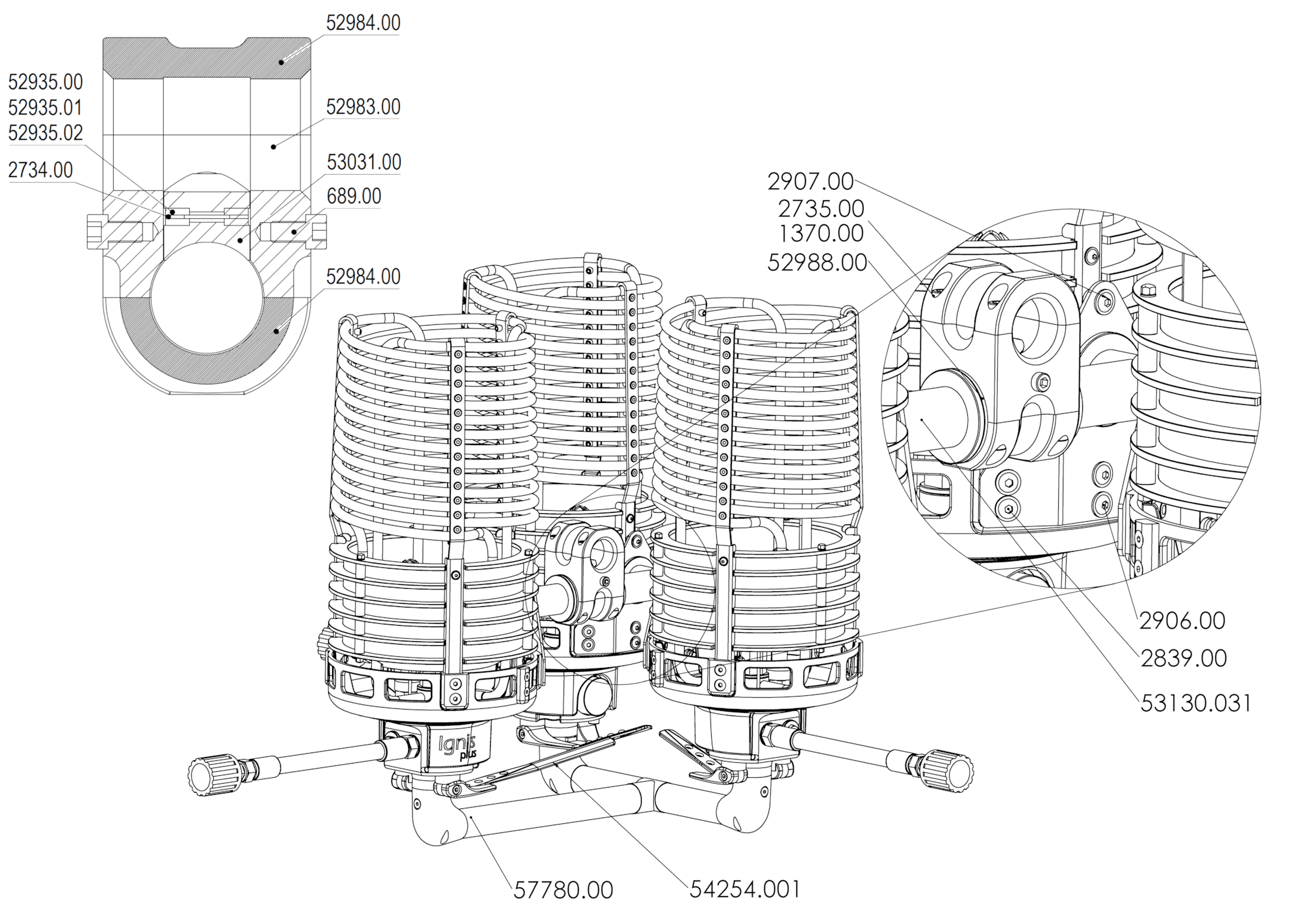

Download schema
IGNIS Plus burner - 3 units

IGNIS Plus burner - 3 units

  • 43053101.001
  • 43053101.001-1

    53101.001

    This part is included in assemblies:

    • Ignis Plus Burner

    Content assembly:

    M6 spring washer, stainless steel

    M6 spring washer, stainless steel

    1370.00
    To be offered/pc
    M12 Spring disc washer

    M12 Spring disc washer

    2734.00
    To be offered/pc
    M6x20 Hexagon socket head cap bolt, stainless steel

    M6x20 Hexagon socket head cap bolt, stainless steel

    2735.00
    To be offered/pc
    M6x20 Flange button head hexagon socket cap bolt, Stainless steel

    M6x20 Flange button head hexagon socket cap bolt, Stainless steel

    2839.00
    To be offered/pc
    Center Jet Washer

    Center Jet Washer

    3532.00
    To be offered/pc
    Gimbal block disc washer 2mm

    Gimbal block disc washer 2mm

    52935.00
    To be offered/pc
    Gimbal block disc washer 2.5mm

    Gimbal block disc washer 2.5mm

    52935.01
    To be offered/pc
    Gimbal block disc washer 3mm

    Gimbal block disc washer 3mm

    52935.02
    To be offered/pc
    Gimbal block body - Ignis 3,4

    Gimbal block body - Ignis 3,4

    52983.00
    To be offered/pc
    Gimbal block bottom/top - Ignis 3, 4

    Gimbal block bottom/top - Ignis 3, 4

    52984.00
    To be offered/pc
    Gimbal friction washer Ignis, Ignis Plus (Trio/Quad)

    Gimbal friction washer Ignis, Ignis Plus (Trio/Quad)

    52988.00
    To be offered/pc
    Gimbal block friction saddle Trio/Quad

    Gimbal block friction saddle Trio/Quad

    53031.00
    To be offered/pc
    Burner unit Ignis Plus - left, one fuel hose system

    Burner unit Ignis Plus - left, one fuel hose system

    53115.011
    Burner unit Ignis Plus - right, one fuel hose system

    Burner unit Ignis Plus - right, one fuel hose system

    53115.021
    Ignis Plus burner handle - 3

    Ignis Plus burner handle - 3

    53130.021
    To be offered/pc
    Burner bracket - Ignis 3 units

    Burner bracket - Ignis 3 units

    53241.00
    To be offered/pc
    Main blast valve lever Ignis Plus - long

    Main blast valve lever Ignis Plus - long

    54254.001
    To be offered/pc
    M6x10 Hexagon socket head cap bolt, stainless steel

    M6x10 Hexagon socket head cap bolt, stainless steel

    689.00
    To be offered/pc
