• IGNIS Plus burner - 2 units
IGNIS Plus burner - 2 units
43053100.001
43053100.001

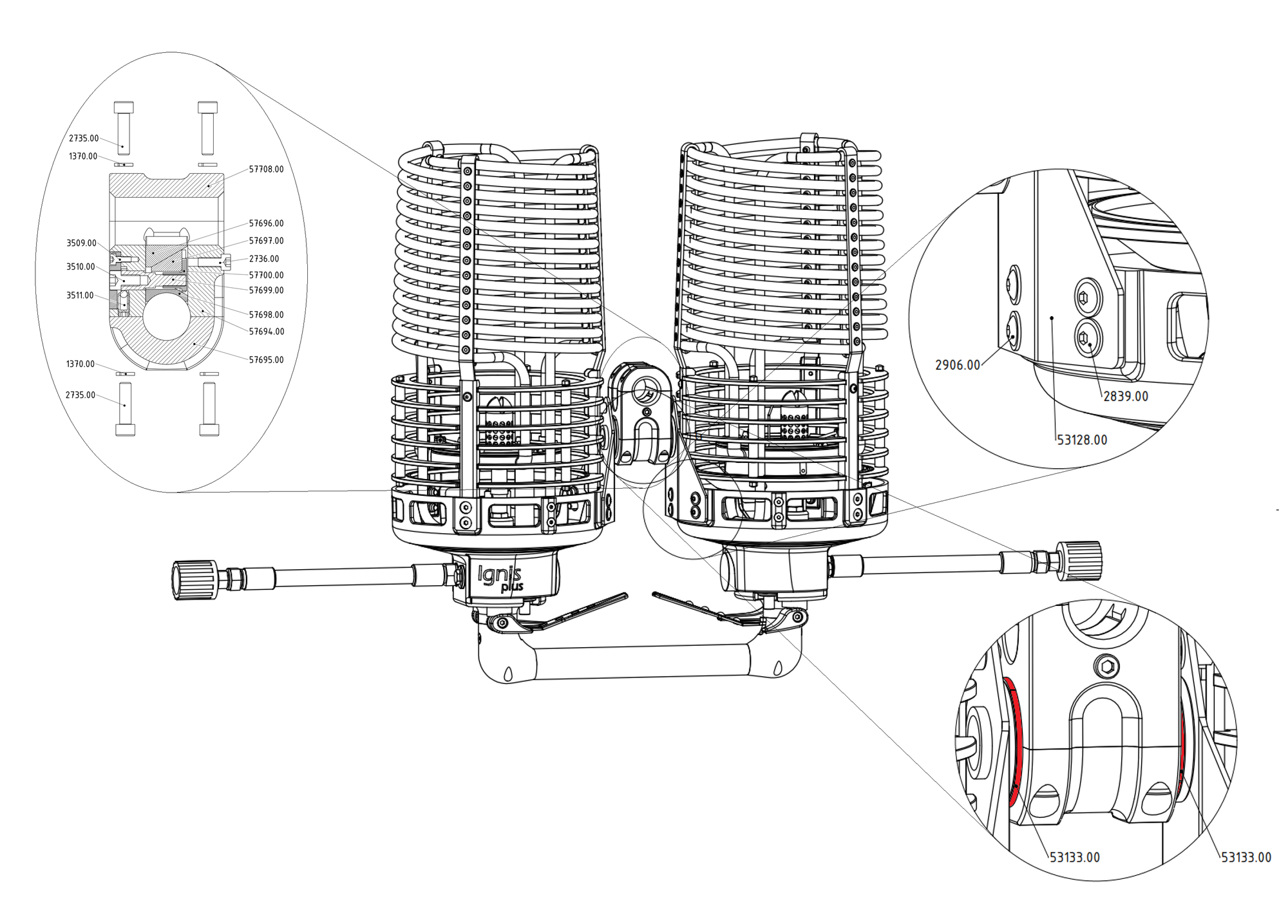

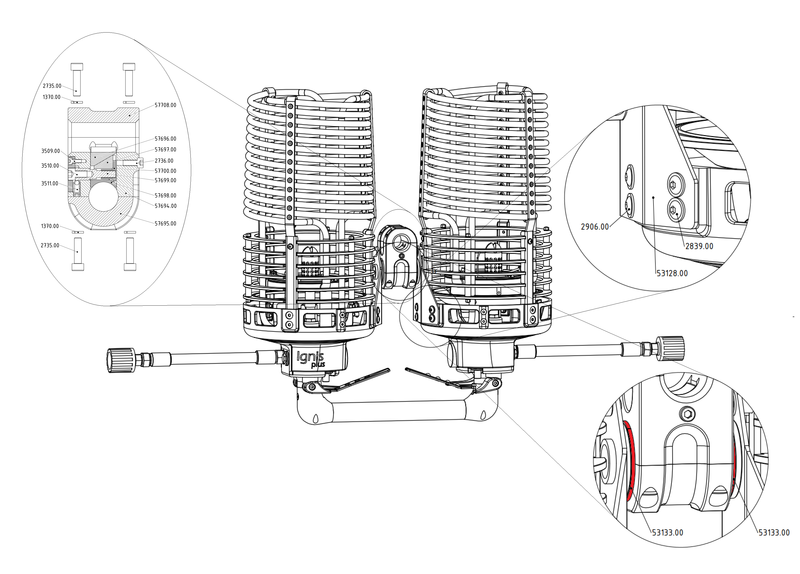

Download schema

IGNIS Plus burner - 2 units

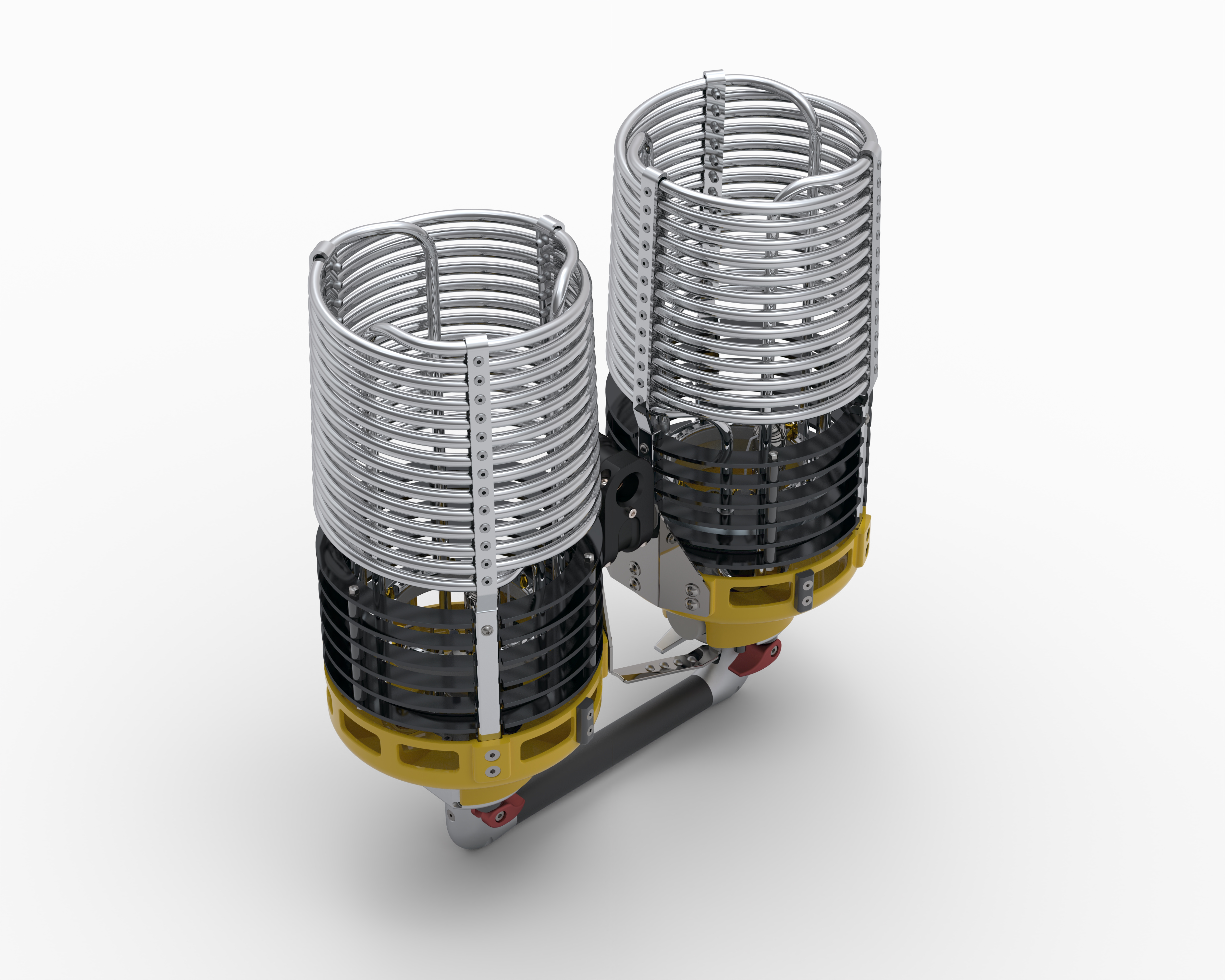

  • AXCuwxb7AYQsPRGSm72u.jpg

    53100.001

    This part is included in assemblies:

    Content assembly:


    M6 spring washer, stainless steel

    1370.00
    To be offered/pc

    M6x20 Hexagon socket head cap bolt, stainless steel

    2735.00
    To be offered/pc

    M5x10 Hexagon socket head cap bolt, stainless steel

    2736.00
    To be offered/pc

    M6x20 Flange button head hexagon socket cap bolt, Stainless steel

    2839.00
    To be offered/pc

    M3x8 Hexagon socket head cap bolt, stainless steel

    3509.00
    To be offered/pc

    M6x10 Hexagon socket head cap bolt, stainless steel

    3510.00
    To be offered/pc

    M6 Ball plunger, stainless steel

    3511.00
    To be offered/pc

    Burner unit Ignis Plus - left, one fuel hose system

    53115.011

    Burner unit Ignis Plus - right, one fuel hose system

    53115.021

    Burner centre bracket - Ignis Plus 2 units

    53128.00
    To be offered/pc

    Ignis Plus burner handle - 2

    53130.011
    To be offered/pc

    Gimbal friction washer Ignis, Ignis Plus

    53133.00
    To be offered/pc

    Gimbal block body Ignis Plus

    57694.00
    To be offered/pc

    Gimbal block bottom - Ignis Plus

    57695.00
    To be offered/pc

    Top wedge - Ignis Plus

    57696.00
    To be offered/pc

    Middle wedge - Ignis Plus

    57697.00
    To be offered/pc

    Bottom wedge - Ignis Plus

    57698.00
    To be offered/pc

    Gimbal bolt

    57699.00
    To be offered/pc

    Gimbal slider - Ignis Plus

    57700.00
    To be offered/pc

    Gimbal ring - Ignis Plus

    57701.00
    To be offered/pc

    Gimbal top - Ignis Plus 2

    57708.00
    To be offered/pc
