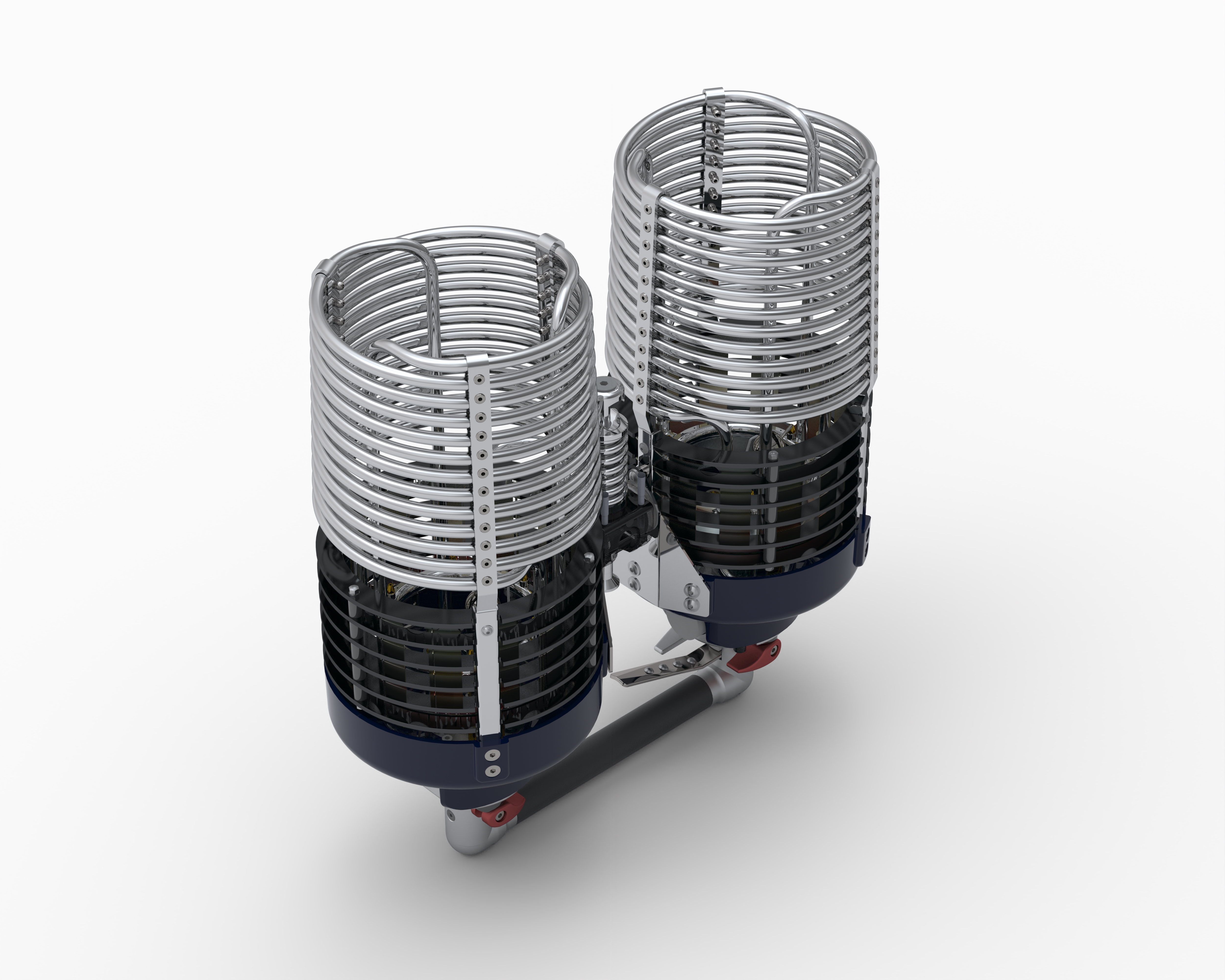

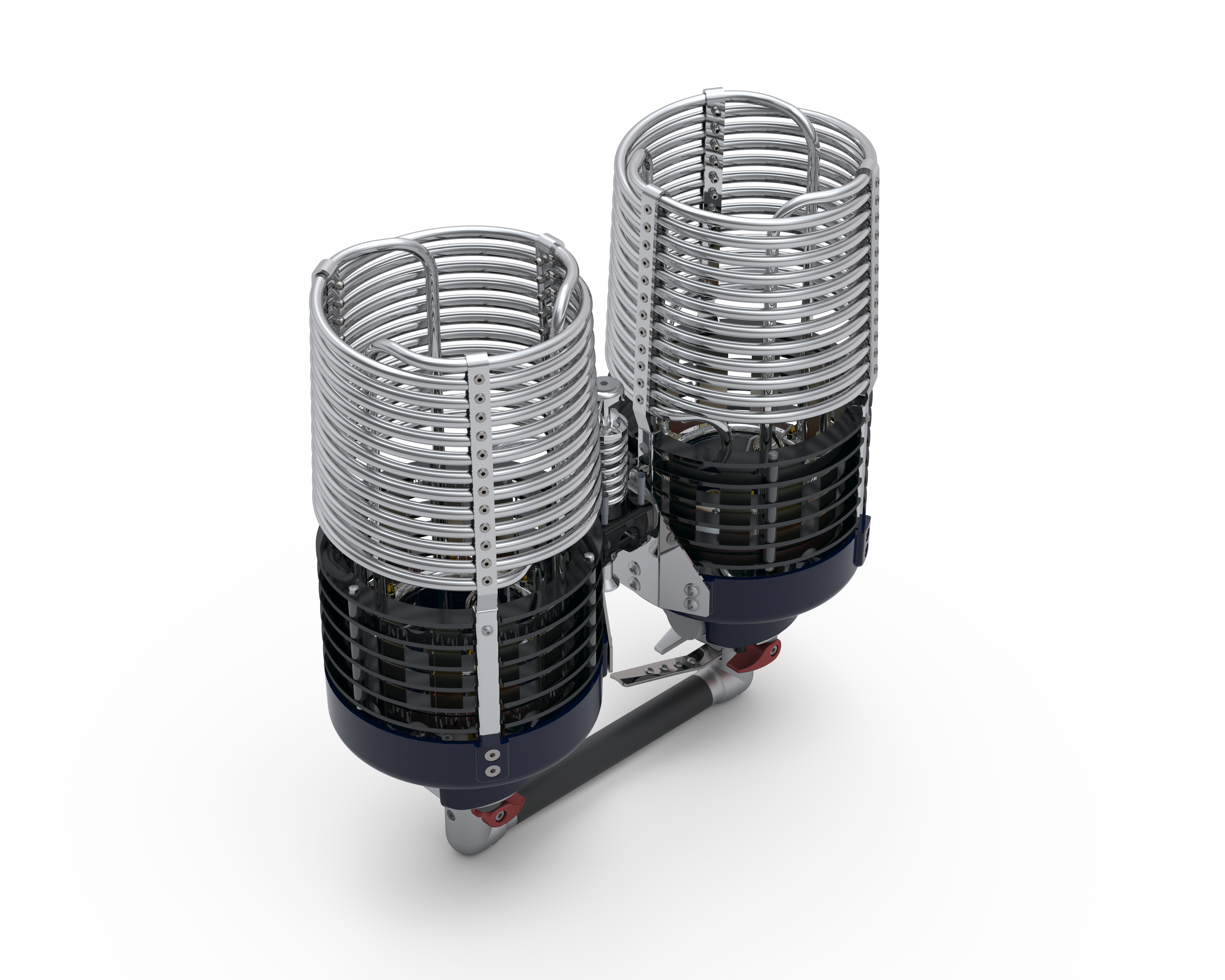

IGNIS burner - 2 units Gyro
43053100.000
43053100.000

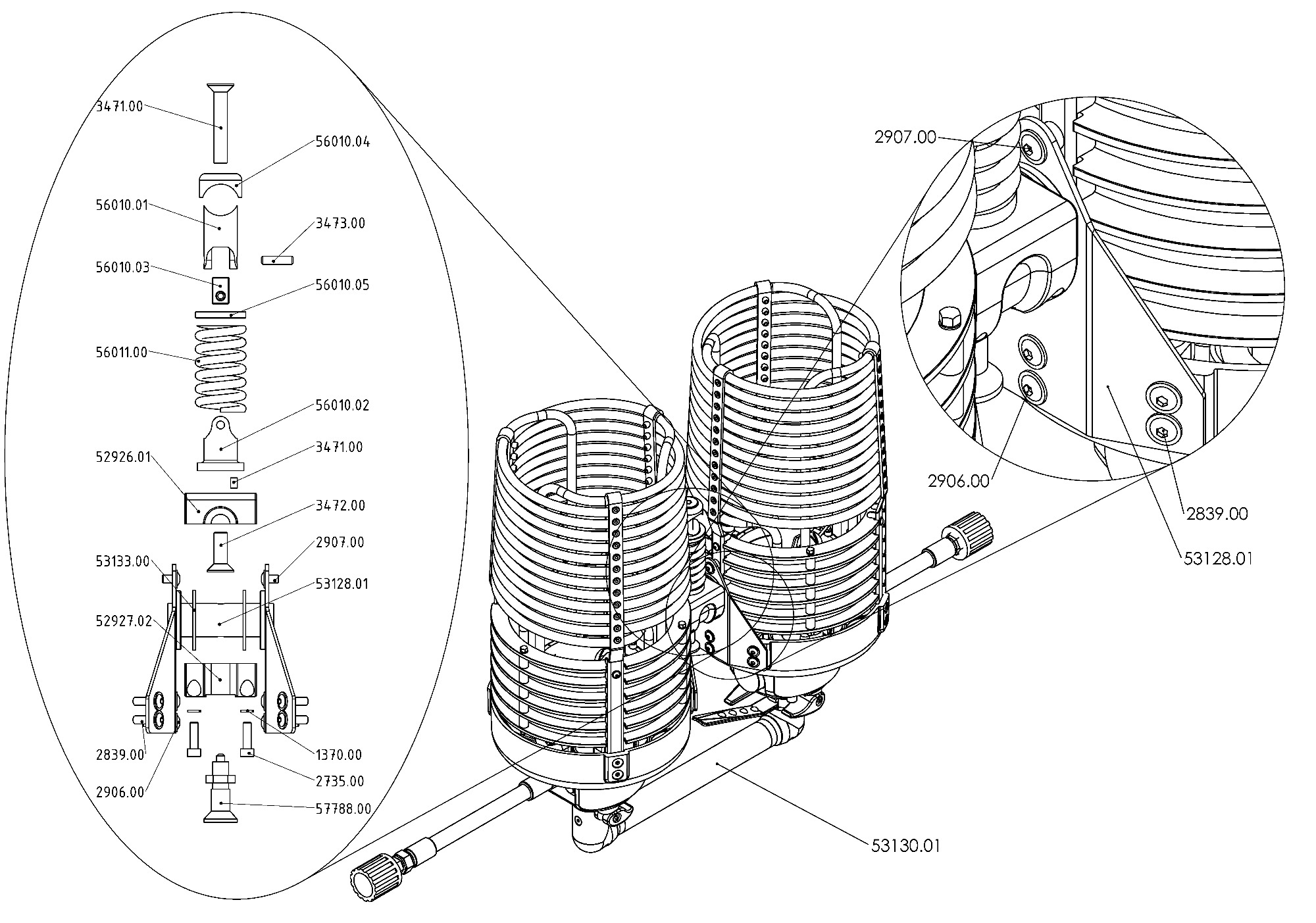

Download schema

IGNIS burner - 2 units Gyro

  • 43053100.000-1
  • 43053100.000

    53100.000

    This part is included in assemblies:

    Content assembly:

    M6 spring washer, stainless steel

    M6 spring washer, stainless steel

    1370.00
    To be offered/pc
    M6x20 Hexagon socket head cap bolt, stainless steel

    M6x20 Hexagon socket head cap bolt, stainless steel

    2735.00
    To be offered/pc
    M6x20 Flange button head hexagon socket cap bolt, Stainless steel

    M6x20 Flange button head hexagon socket cap bolt, Stainless steel

    2839.00
    To be offered/pc
    M6x25 Flange button head hexagon socket cap bolt, Stainless steel

    M6x25 Flange button head hexagon socket cap bolt, Stainless steel

    2906.00
    To be offered/pc
    M6x10 Flange button head hexagon socket cap bolt, Stainless steel

    M6x10 Flange button head hexagon socket cap bolt, Stainless steel

    2907.00
    To be offered/pc
    M10x60 Hexagon socket countersunk head cap bolt, stainless steel

    M10x60 Hexagon socket countersunk head cap bolt, stainless steel

    3471.00
    To be offered/pc
    M10x30 Hexagon socket countersunk head cap bolt, stainless steel

    M10x30 Hexagon socket countersunk head cap bolt, stainless steel

    3472.00
    To be offered/pc
    Spring pin

    Spring pin

    3473.00
    To be offered/pc
    Roll pin 5x8

    Roll pin 5x8

    3474.00
    To be offered/pc
    Gimbal block middle - Ignis 2 Gyro

    Gimbal block middle - Ignis 2 Gyro

    52926.01
    To be offered/pc
    Gimbal block bottom - Ignis Gyro

    Gimbal block bottom - Ignis Gyro

    52927.01
    To be offered/pc
    Burner unit Ignis - left, one fuel hose system

    Burner unit Ignis - left, one fuel hose system

    53115.01
    Burner unit Ignis - right, one fuel hose system

    Burner unit Ignis - right, one fuel hose system

    53115.02
    Burner centre bracket - Ignis 2 units Gyro

    Burner centre bracket - Ignis 2 units Gyro

    53128.01
    To be offered/pc
    Ignis burner handle - 2

    Ignis burner handle - 2

    53130.01
    To be offered/pc
    Gimbal friction washer Ignis, Ignis Plus (Double)

    Gimbal friction washer Ignis, Ignis Plus (Double)

    53133.00
    To be offered/pc
    Gyro Cylinder frame saddle

    Gyro Cylinder frame saddle

    56010.01
    To be offered/pc
    Gyro Cylinder with base

    Gyro Cylinder with base

    56010.02
    To be offered/pc
    Gyro block

    Gyro block

    56010.03
    To be offered/pc
    Gyro frame saddle

    Gyro frame saddle

    56010.04
    To be offered/pc
    Gyro washer

    Gyro washer

    56010.05
    To be offered/pc
    Gyro gimbal spring

    Gyro gimbal spring

    56011.00
    To be offered/pc
    Gyro pin 8mm

    Gyro pin 8mm

    57788.00
    To be offered/pc
