Burner unit Ignis - right, two fuel hose system
33053115.04
33053115.04

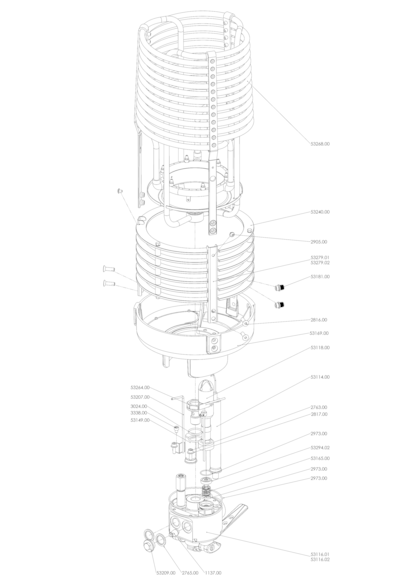

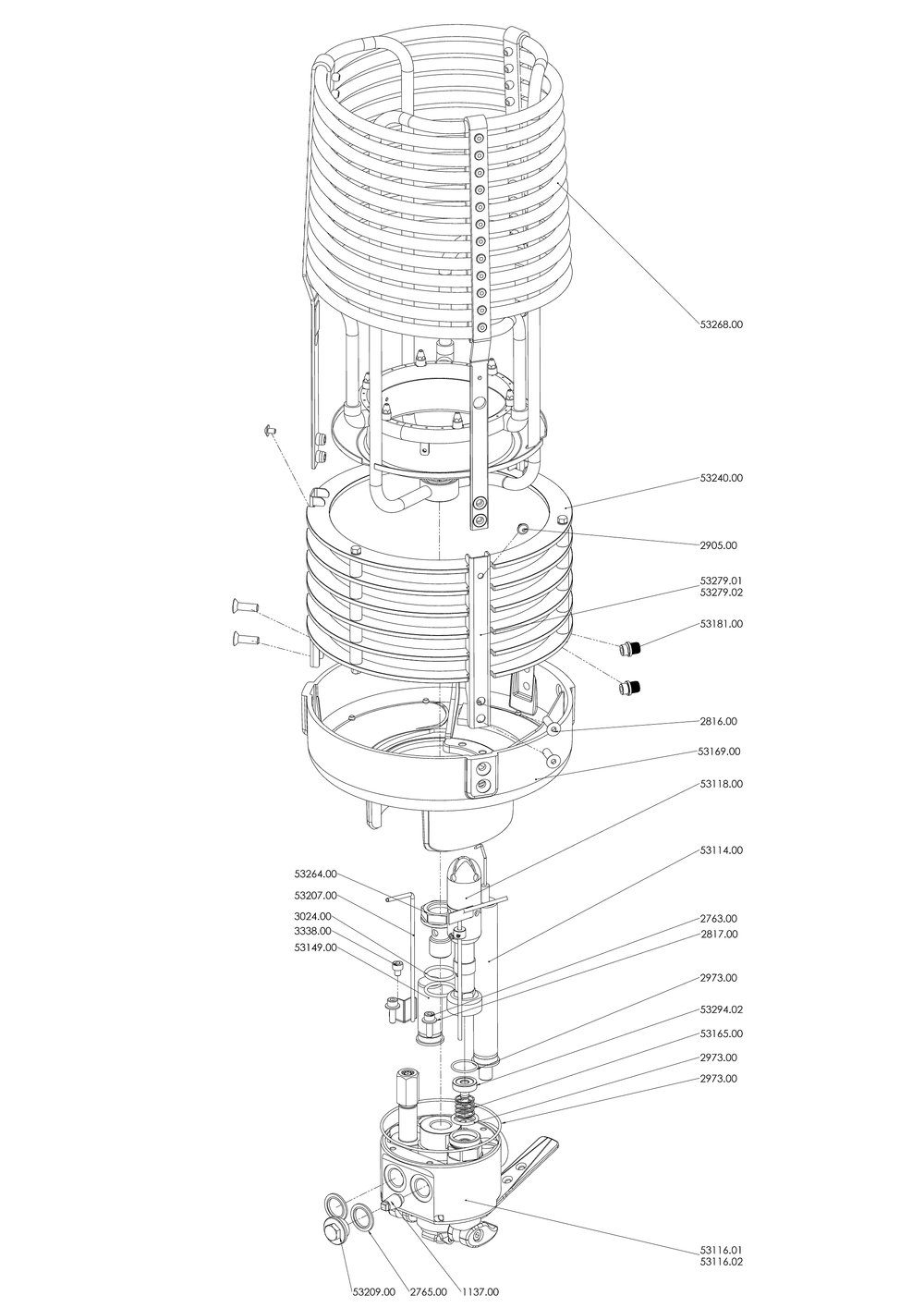

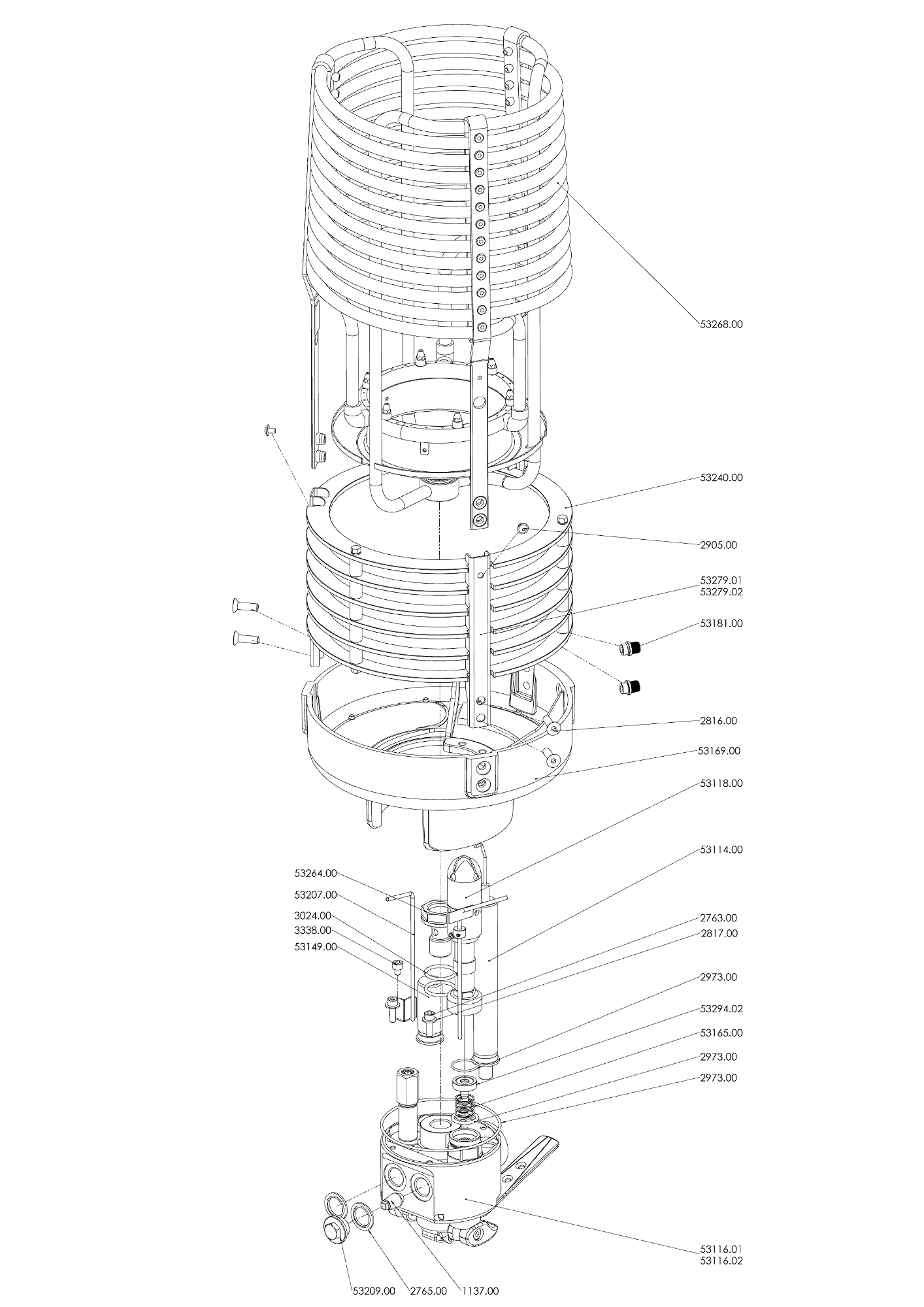

Download schema

Burner unit Ignis - right, two fuel hose system

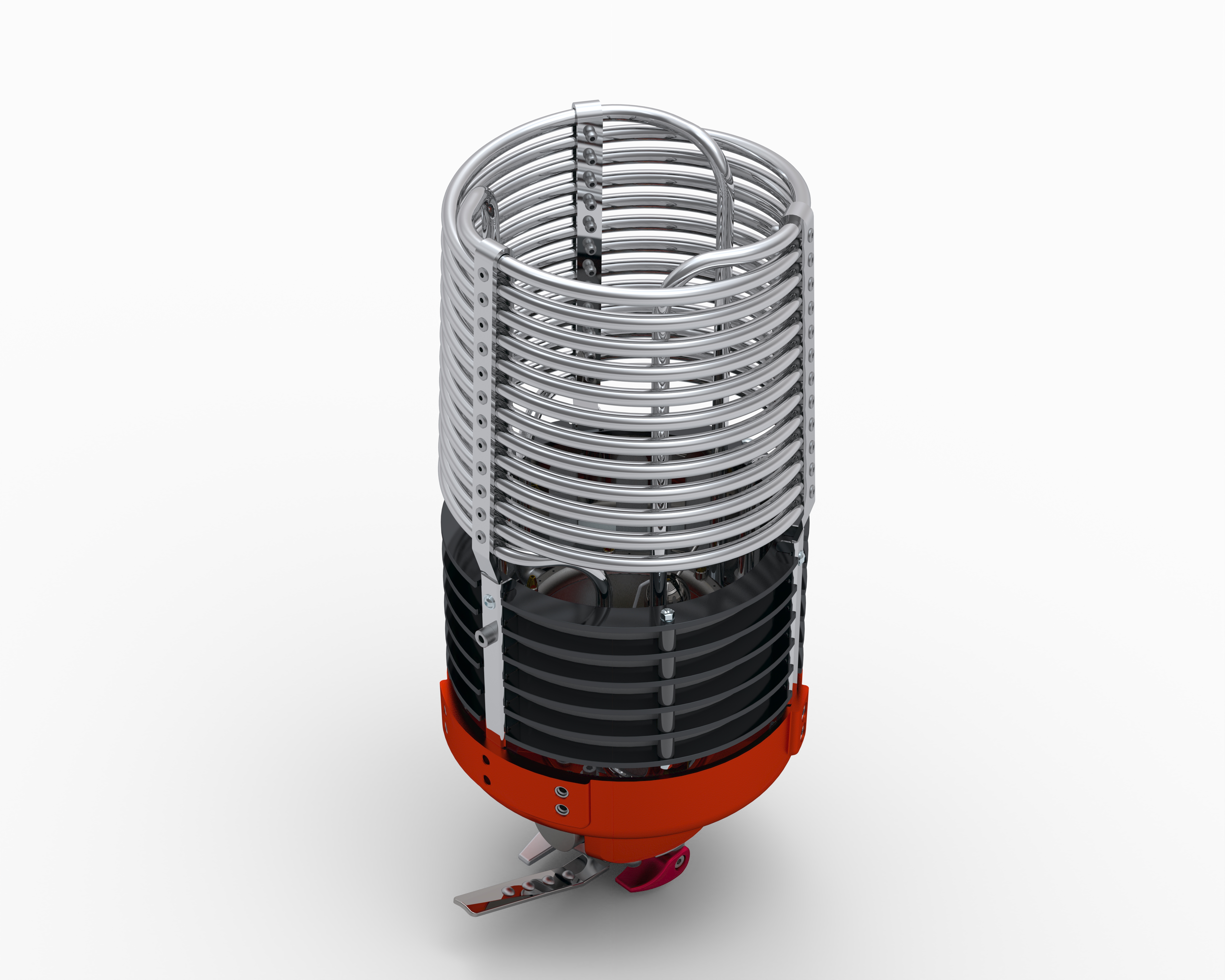

  • AXCt5kq_AYQsPRGSmj3x.jpg

    53115.04

    Content assembly:


    REGO fitting - 7141F

    2696.00
    To be offered/pc

    M5x16 Hexagon socket head cap bolt, stainless steel

    2763.00
    To be offered/pc

    Bonded Washer 16.7x24x1.5

    2765.00
    To be offered/pc

    M6x20 Hexagon socket countersunk head cap bolt, stainless steel

    2816.00
    To be offered/pc

    M5 Spring disc washer

    2817.00
    To be offered/pc

    M4x6 Flange button head hexagon socket cap bolt, Stainless steel

    2905.00
    To be offered/pc

    O-ring 96x2

    2912.00
    To be offered/pc

    O-ring 19.5x1.5

    2973.00
    To be offered/pc

    O-ring 22x2.5

    3024.00
    To be offered/pc

    M5x6 Hexagon socket head cap bolt, stainless steel

    3338.00
    To be offered/pc

    Socket head plug 1/8 BSP

    3339.00
    To be offered/pc

    Fuel hose 6mm IGNISxDYNAQUIP, L=2650 mm

    53103.01
    To be offered/pc

    Piezoelectric ignition assembly Ignis / Sirius

    53114.00
    To be offered/pc

    Manifold assembly Ignis - right

    53116.02

    Pilot burner Ignis - assembly

    53118.00
    To be offered/pc

    Plug

    53149.00
    To be offered/pc

    Vaporiser Spring

    53165.00
    To be offered/pc

    Ignis can

    53169.00

    Threaded insert M6 Ignis, Ignis Plus

    53181.00
    To be offered/pc

    Slurper tube Ignis, Ignis Plus

    53207.00
    To be offered/pc

    Coil ring assembly Ignis

    53240.00

    Coil central bolt Ignis

    53264.00
    To be offered/pc

    Coil Ignis

    53268.00
    To be offered/pc

    Coil ring holder 1

    53279.01
    To be offered/pc

    Coil ring holder 2

    53279.02
    To be offered/pc

    PR piston - vapour

    53294.01
    To be offered/pc
