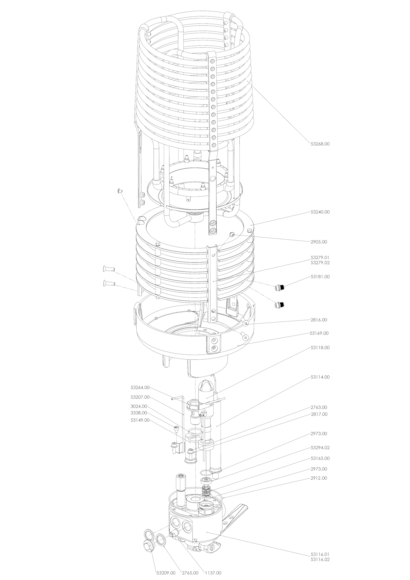

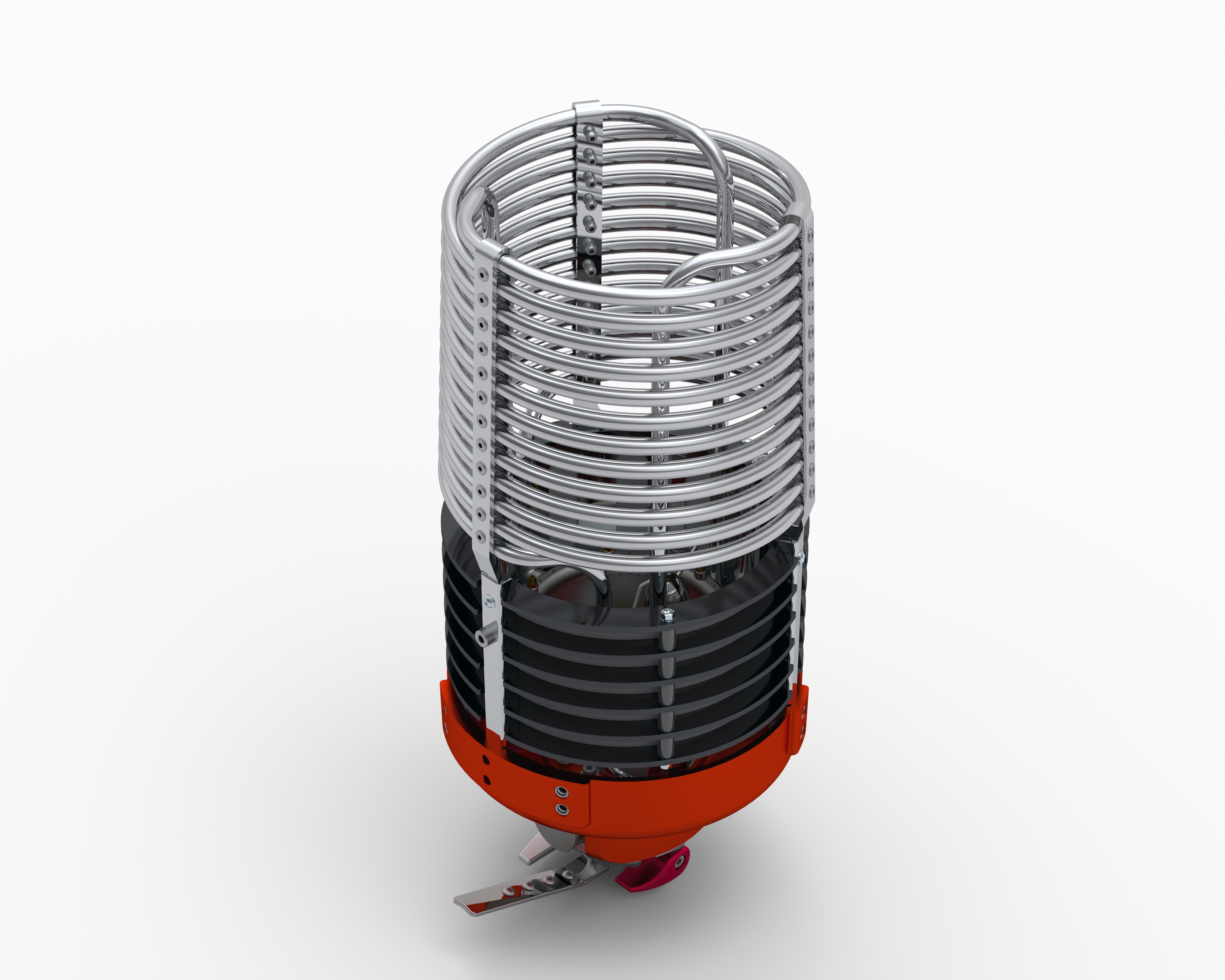

Burner unit Ignis - right, one fuel hose system
33053115.02
33053115.02
Download schema

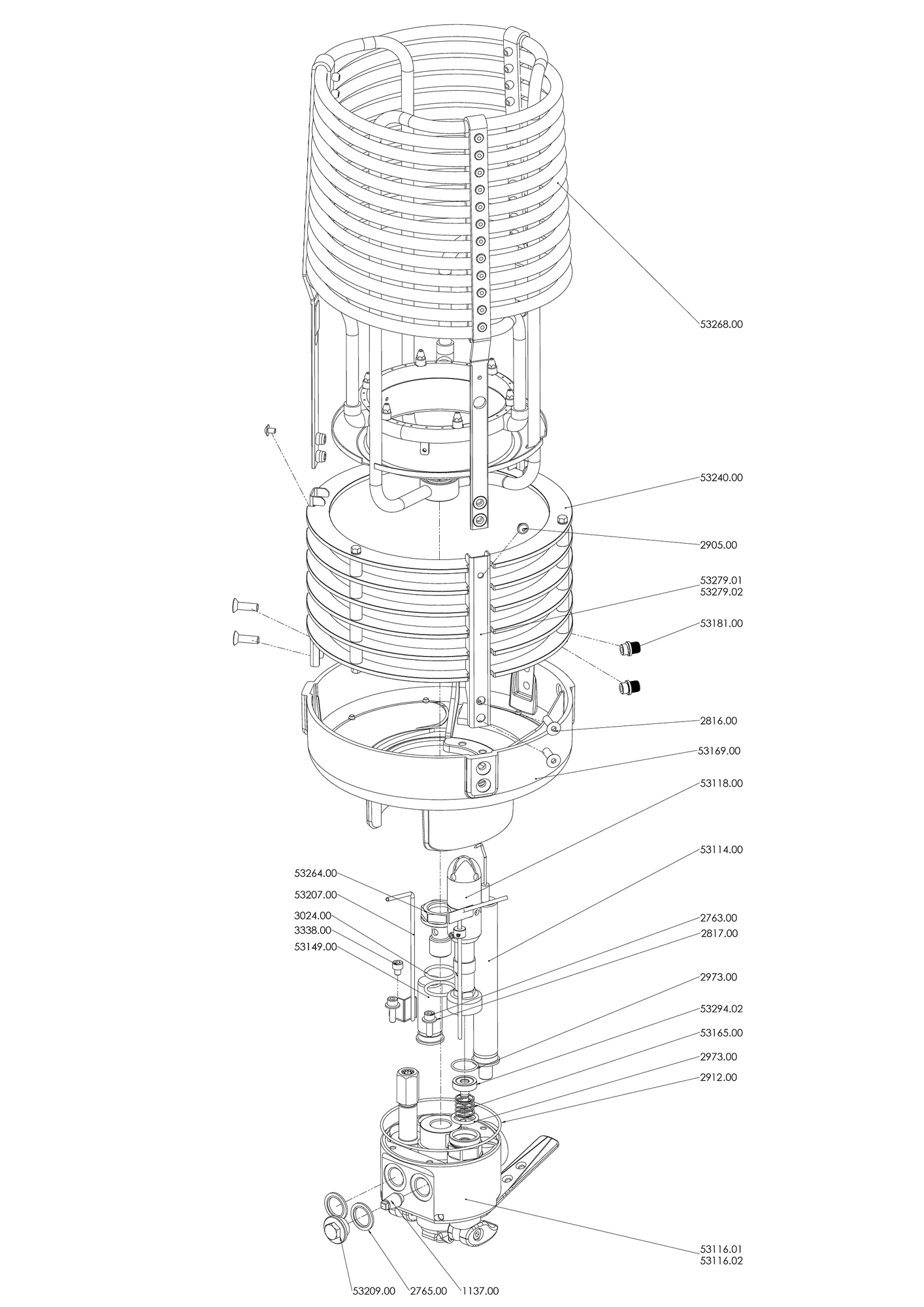

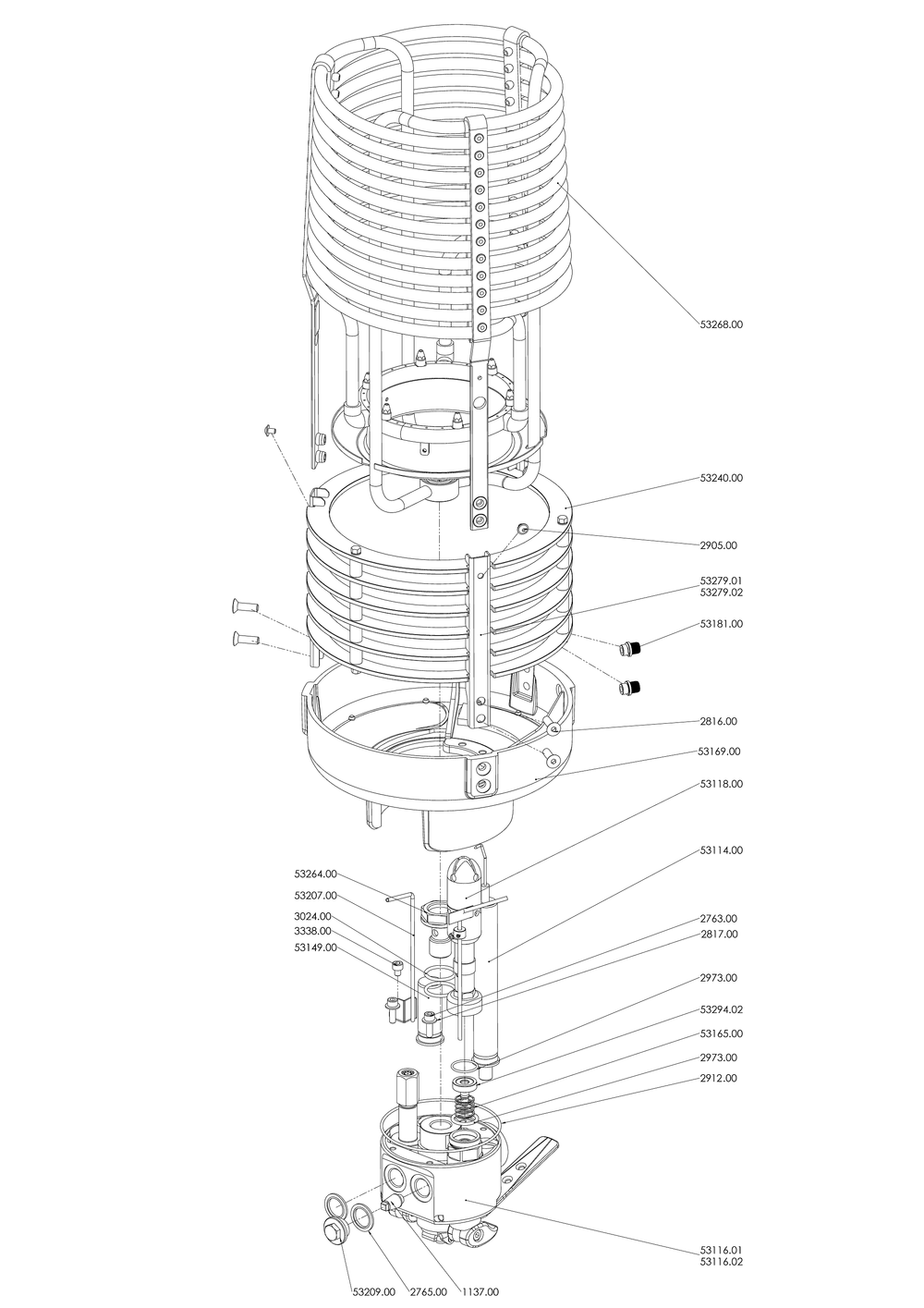

Burner unit Ignis - right, one fuel hose system

  • 33053115.02

    53115.02

    This part is included in assemblies:

    Content assembly:

    2321137.00

    Filter liquid phase

    1137.00
    To be offered/pc
    2322696.00

    REGO fitting - 7141F

    2696.00
    To be offered/pc
    2302763.00

    M5x16 Hexagon socket head cap bolt, stainless steel

    2763.00
    To be offered/pc
    2362765.00

    Bonded Washer 16.7x24x1.5

    2765.00
    To be offered/pc
    2302816.00

    M6x20 Hexagon socket countersunk head cap bolt, stainless steel

    2816.00
    To be offered/pc
    2302817.00

    M5 Spring disc washer

    2817.00
    To be offered/pc
    2302905.00

    M4x6 Flange button head hexagon socket cap bolt, Stainless steel

    2905.00
    To be offered/pc
    2362912.00

    O-ring 96x2

    2912.00
    To be offered/pc
    2362973.00

    O-ring 19.5x1.5

    2973.00
    To be offered/pc
    2363024.00

    O-ring 22x2.5

    3024.00
    To be offered/pc
    2303338.00

    M5x6 Hexagon socket head cap bolt, stainless steel

    3338.00
    To be offered/pc
    33053114.00

    Piezoelectric ignition assembly Ignis / Sirius

    53114.00
    To be offered/pc
    33053116.02

    Manifold assembly Ignis - right

    53116.02
    33053118.00

    Pilot burner Ignis - assembly

    53118.00
    To be offered/pc
    33053149.00

    Plug

    53149.00
    To be offered/pc
    33053165.00

    Vaporiser Spring

    53165.00
    To be offered/pc
    33053169.00

    Ignis can

    53169.00
    33053181.00

    Threaded insert M6 Ignis, Ignis Plus

    53181.00
    To be offered/pc
    33053207.00

    Slurper tube Ignis, Ignis Plus

    53207.00
    To be offered/pc
    33053209.00

    Hose blanking plug

    53209.00
    To be offered/pc
    33053240.00

    Coil ring assembly Ignis

    53240.00
    33053264.00

    Coil central bolt Ignis

    53264.00
    To be offered/pc
    33053268.00

    Coil Ignis

    53268.00
    To be offered/pc
    33053279.01

    Coil ring holder 1

    53279.01
    To be offered/pc
    33053279.02

    Coil ring holder 2

    53279.02
    To be offered/pc
    33053294.02

    PR piston - liquid

    53294.02
    To be offered/pc
