• Burner unit Ignis Plus - left, one fuel hose system
Burner unit Ignis Plus - left, one fuel hose system
33053115.011
33053115.011

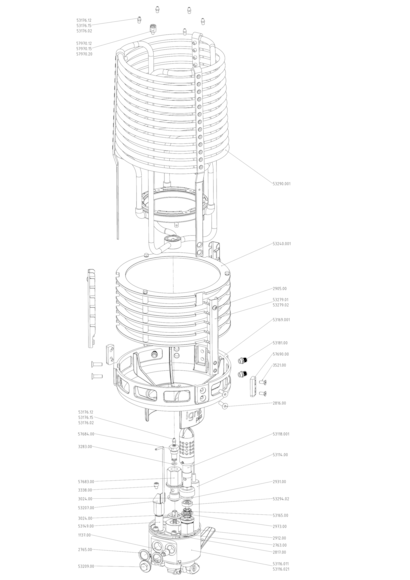

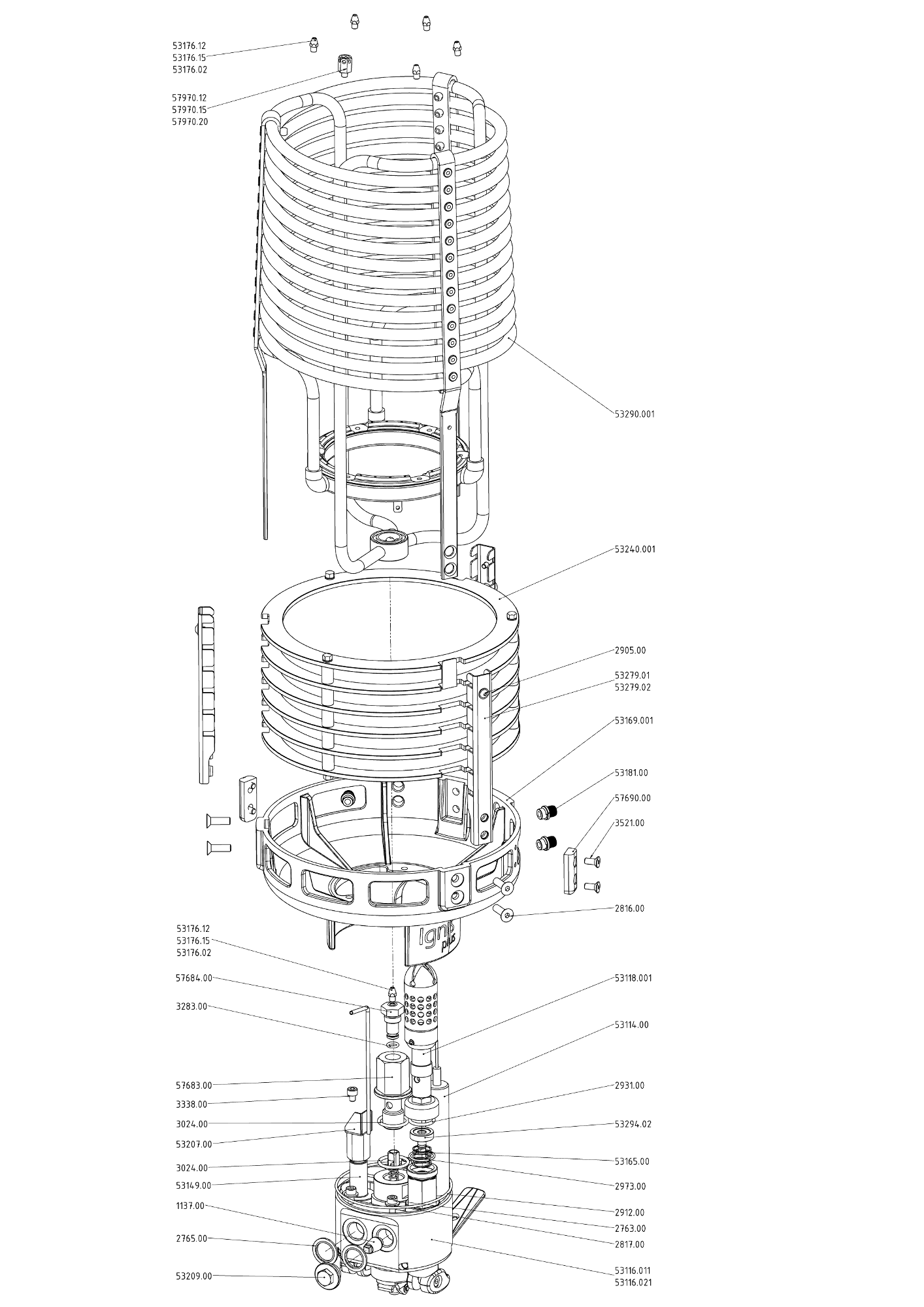

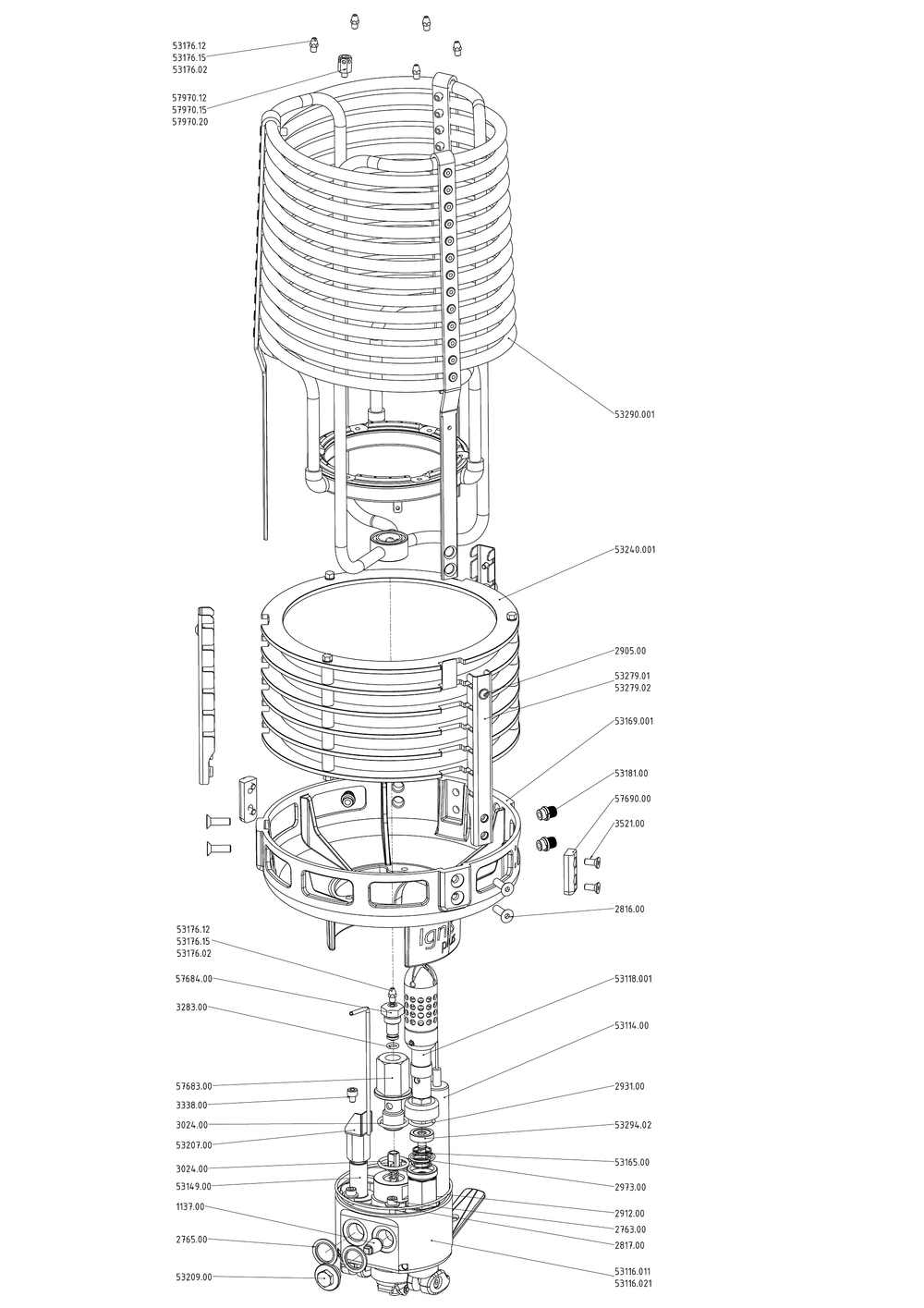

Download schema

Burner unit Ignis Plus - left, one fuel hose system

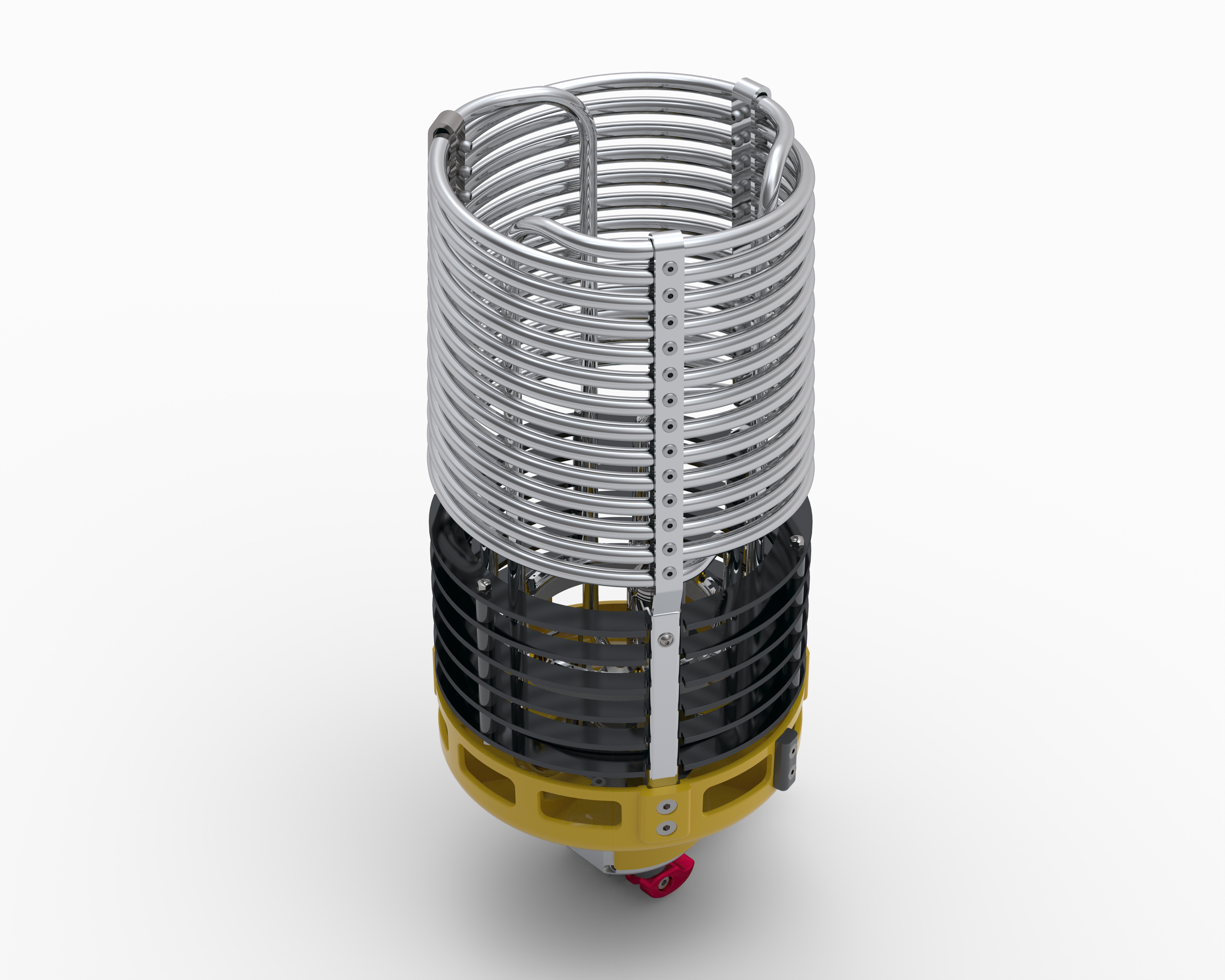

  • AXCt6DLKAYQsPRGSmkFL.jpg

    53115.011

    This part is included in assemblies:

    Content assembly:


    Filter liquid phase

    1137.00
    To be offered/pc

    M5x16 Hexagon socket head cap bolt, stainless steel

    2763.00
    To be offered/pc

    Bonded Washer 16.7x24x1.5

    2765.00
    To be offered/pc

    M6x20 Hexagon socket countersunk head cap bolt, stainless steel

    2816.00
    To be offered/pc

    M5 Spring disc washer

    2817.00
    To be offered/pc

    M4x6 Flange button head hexagon socket cap bolt, Stainless steel

    2905.00
    To be offered/pc

    O-ring 96x2

    2912.00
    To be offered/pc

    O-ring 19.5x1.5

    2973.00
    To be offered/pc

    O-ring 22x2.5

    3024.00
    To be offered/pc

    O-ring 7x1,8

    3283.00
    To be offered/pc

    M5x6 Hexagon socket head cap bolt, stainless steel

    3338.00
    To be offered/pc

    M5x12 Hexagon socket countersunk head cap bolt, stainless steel

    3521.00
    To be offered/pc

    REGO fitting F Hi-flow

    3523.00
    To be offered/pc

    Piezoelectric ignition assembly Ignis / Sirius

    53114.00
    To be offered/pc

    Manifold assembly Ignis Plus - left

    53116.011

    Pilot burner Ignis Plus / Sirius - assembly

    53118.001
    To be offered/pc

    Plug

    53149.00
    To be offered/pc

    Vaporiser Spring

    53165.00
    To be offered/pc

    Ignis Plus can

    53169.001

    Burner jet (d=2mm)

    53176.02
    To be offered/pc

    Burner jet (d=1.2mm)

    53176.12
    To be offered/pc

    Burner jet (d=1.5mm)

    53176.15
    To be offered/pc

    Threaded insert M6 Ignis, Ignis Plus

    53181.00
    To be offered/pc

    Slurper tube Ignis, Ignis Plus

    53207.00
    To be offered/pc

    Hose blanking plug

    53209.00
    To be offered/pc

    Coil ring assembly Ignis Plus

    53240.001

    Coil ring holder 1

    53279.01
    To be offered/pc

    Coil ring holder 2

    53279.02
    To be offered/pc

    Vaporising coil with jet ring Ignis Plus

    53290.001
    To be offered/pc

    PR piston - liquid

    53294.02
    To be offered/pc

    Fuel Supply Bolt Ignis Plus / Sirius

    57683.00
    To be offered/pc

    Center Jet Ignis Plus / Sirius

    57684.00
    To be offered/pc

    Can protector, Ignis plus

    57690.00
    To be offered/pc

    Grating Ignis Plus - left

    57704.00
    To be offered/pc

    Foam for liguid Ignis Plus - left

    57706.00
    To be offered/pc

    Slurper jet 1.2mm

    57970.12
    To be offered/pc

    Slurper jet 1.5mm

    57970.15
    To be offered/pc

    Slurper jet 2.0mm

    57970.20
    To be offered/pc

    Fuel hose Hydroscand 10mm Ignis/Sirius - REGO, L=2650

    57975.01
    To be offered/pc

    REGO dust cap for Female coupling

    57987.00

    For burner

    To be offered/pc
